Add Link for macro

Summary

This block is used to create a link between source(s) and target(s).

Implementation

• Drag and drop the block from the palette

• Link the "execute" action from the "executed" topic of the previous block

• By convention, we name the block with the source slot name, an arrow and the target slot name: "sourceSlotName -> targetSlotName"



Example

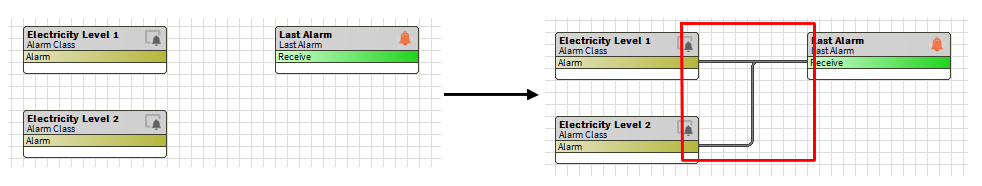

This block creates a link between two artifacts:

• AlarmClass: the alarm classes created by a previous block (it's an array of alarm class). The link is created from the slot "alarm"

• LastAlarm: this is a component from btibToolkit which displays the last X alarms. The link is created to the slot "receive"

 Properties

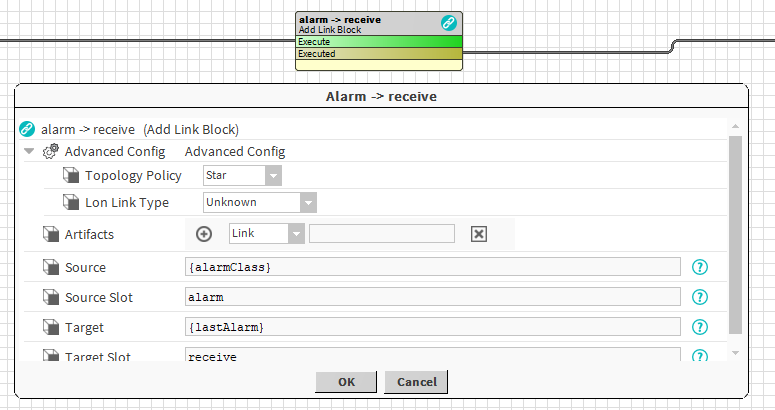

• Artifacts: Artifacts created by this block


  • Link: link(s) created. Ex: the 2 links between Electricity Level 1 & Electricity Level 2 and Last Alarm

• Source: SFormat to define the source component of the link. Ex: the AlarmClasses added by a previous block

  •  SFormat: artifacts "target" and "source" are available to resolve the slot name depending on source or target. Ex: LonLink on {source.slot('objectId').subtract(5)}

• SourceSlot: SFormat to define the name of the source slot. Ex: topic "alarm" of each AlarmClass (Electricity Level 1 & Electricity Level 2)


• Target: SFormat to define the target component of the link. Ex: the LastAlarm of the AlarmService

• TargetSlot: SFormat to define the name of the target slot. Ex: action "receive" of the LastAlarm

  •  SFormat: artifacts "target" and "source" are available to resolve the slot name depending on source or target. Ex: LonLink on {target.slot('objectId').subtract(5)}

Note: you can use {source} or {target} when you want to access to a value from each element of artifacts. Example: nvoAitherSensor{source.slot('objectId').subtract(3).toInt}

 Advanced Config

• Topology Policy: Define the topology of the links to create between several sources and several targets

  • Chain: each source is linked to the first target and it starts a chain with every target. Ex: Source 1 -> Target 1 -> Target 2 -> ... && Source 2 -> Target 1 -> Target 2 -> ...

  • Star: each source is linked to every target. Ex: Source1 -> Target 1 && Source 1 -> Target 2 && Source 2 -> Target 1 && Source 2 -> Target 2

  • Parallel: each source is linked to only one target corresponding by index. Ex: Source 1 -> Target 1 && Source 2 -> Target 2...

• LonLinkType: Appears only if the LonModule is installed in the station. You can choose what type of LonLinks to create. Be careful with the restrictions offered by the Lon Protocol.
