HttpPostRecipient

Description

The HttpPostRecipient is used to push an alarm to an external API.


Implementation

  • Copy and paste the component into the AlarmService

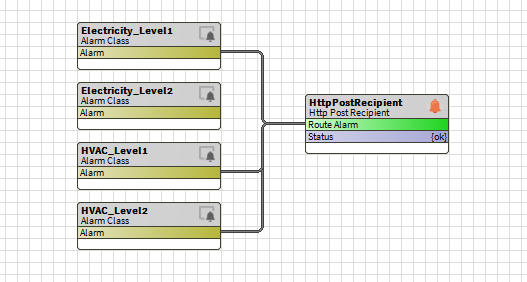

  • Link the "alarm" slot of alarm classes to the "routeAlarm" slot of the HttpPostRecipient




Properties

  • Status: Indicates the general status of the component, {ok} if the operation was successful or {fault} to indicate abnormal behavior

  • FaultCause: Indicates the cause of a configuration error. The FaultCause is empty if the component is properly configured.

  • OptionalAlarmData: It allows you to add extra information about the alarm. It should be a tag listed in the "metadata" slot of the alarm extension. Different tags can be displayed and should be separated by a semicolon ";"

  • TimeFormat: Used to encode dates before sending it to the API. This is a standard Java format.

  • Authentication: The type of authentication needed. Available types can be found in btibCore palette, Auth folder.

  • Url: The address of the API server to make the POST request

  • PingUrl: The address to ping to test the API server

  • Headers: Optional HTTP headers


Actions

  • Ping: Ping the "pingUrl" address to try to test the API server
