Step 1 Set up AWS IoT

Before using the btibAWS IoT you must first have an AWS account, follow this link to do so: https://aws.amazon.com/premiumsupport/knowledge-center/create-and-activate-aws-account/

Setup API Key

Niagara needs an API key to access AWS IoT Services and manage devices:

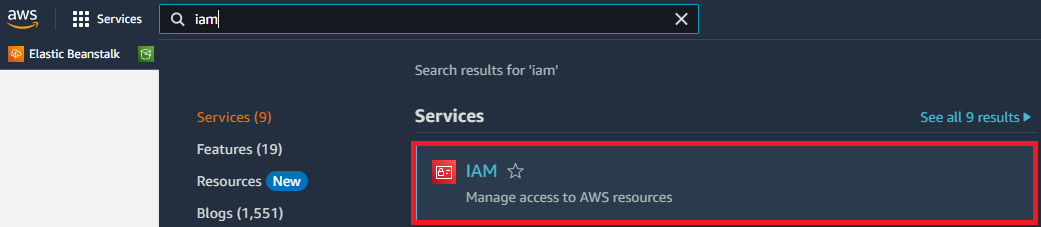

  1. Go to the IAM service on the AWS console.

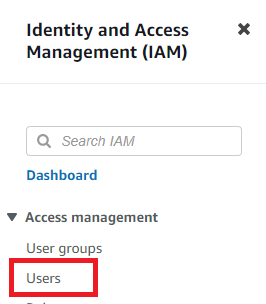

  2. Then Users

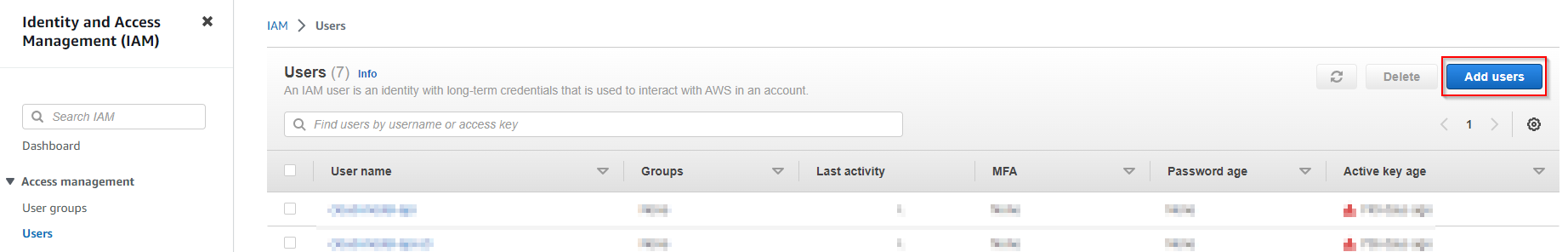

  3. Click the Add Users button

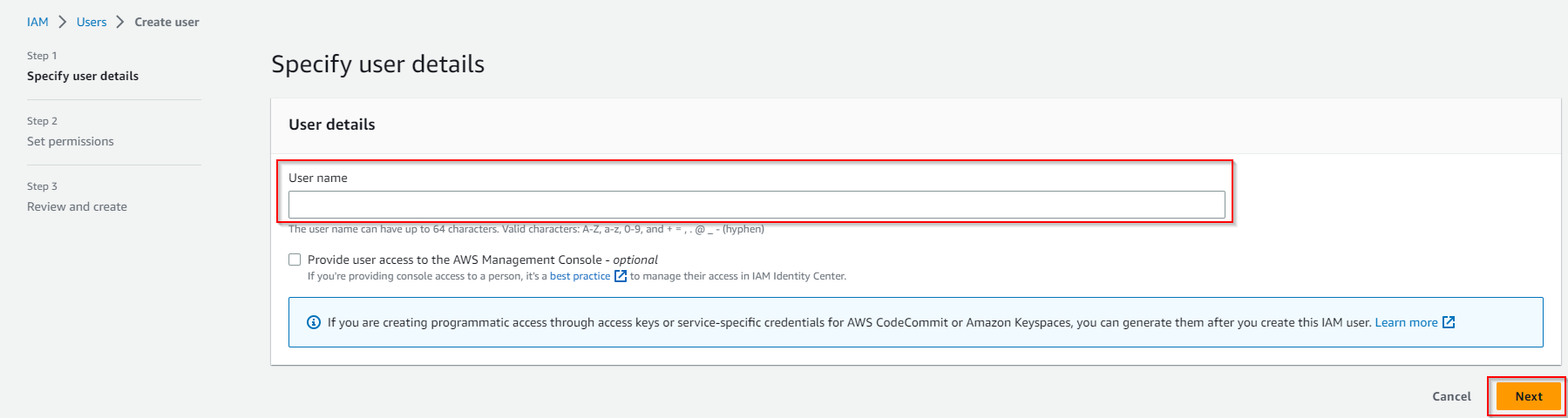

  4. Give a username to your user, then click next.

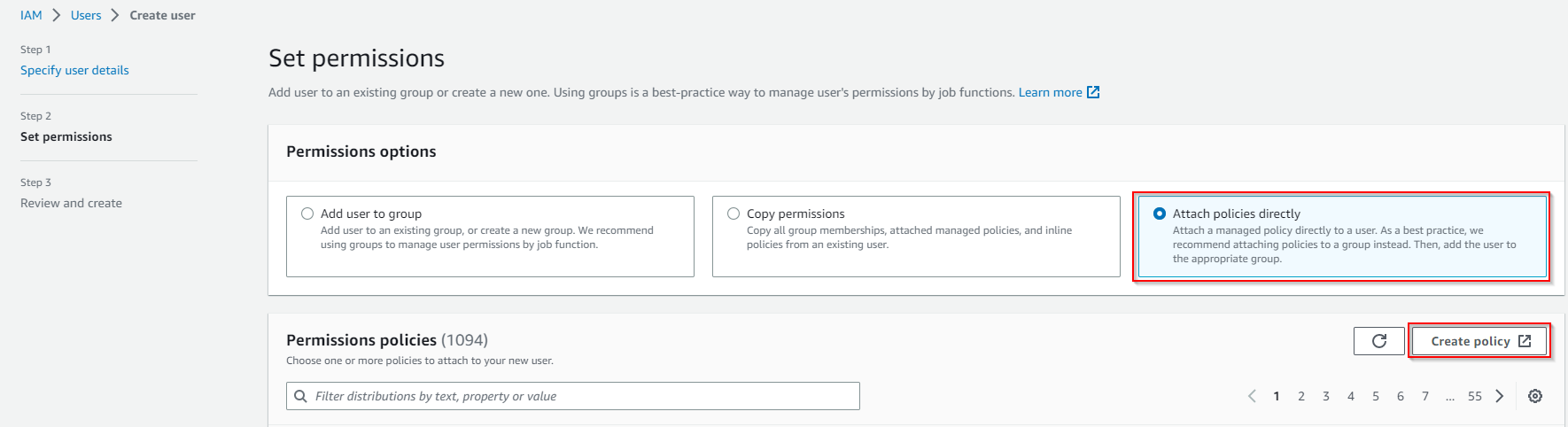

  5. Then Attach policies directly, Then hit Create policy. A new tab will open.

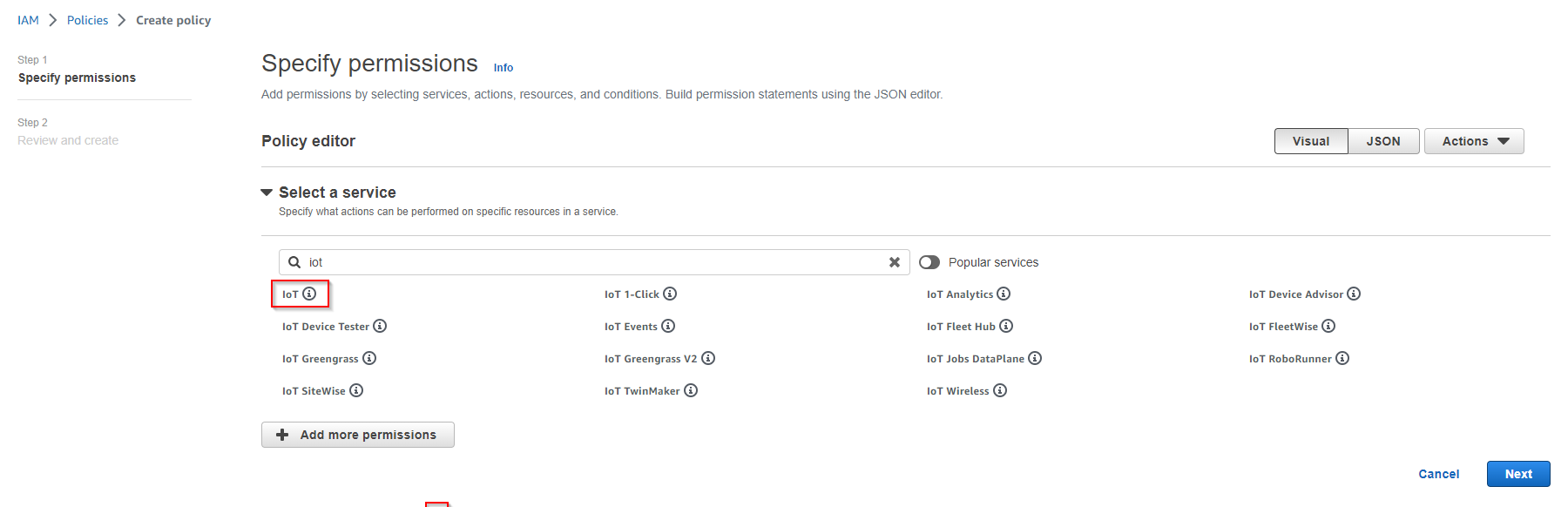

  6.  Select the Iot service

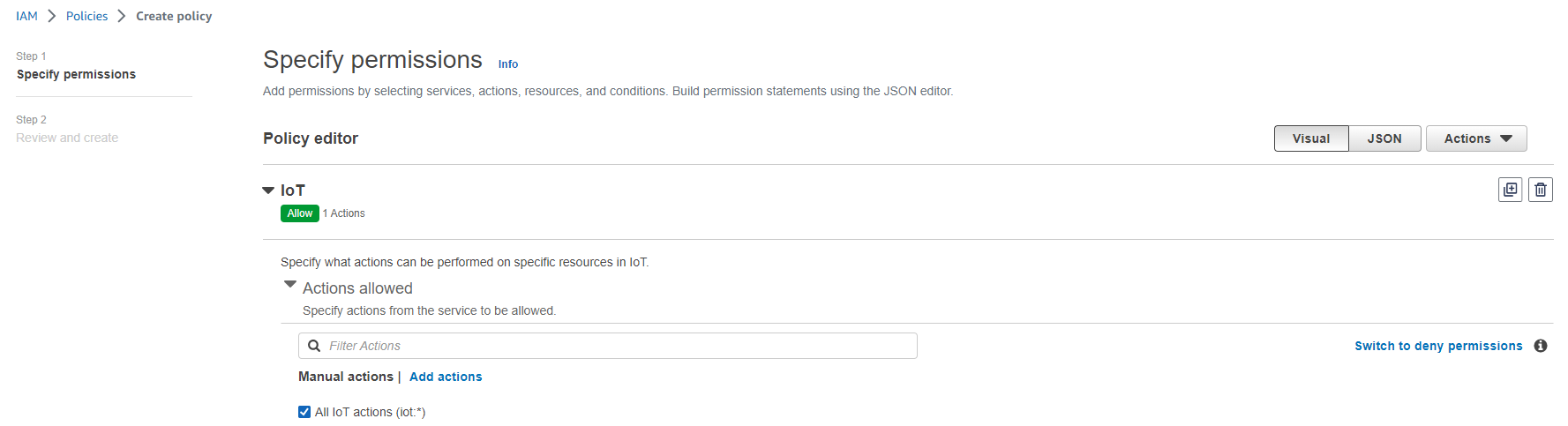

  7. Allow All IoT actions

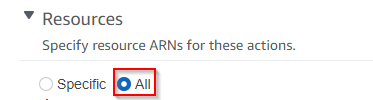

  8. Allow All resources, then hit Next

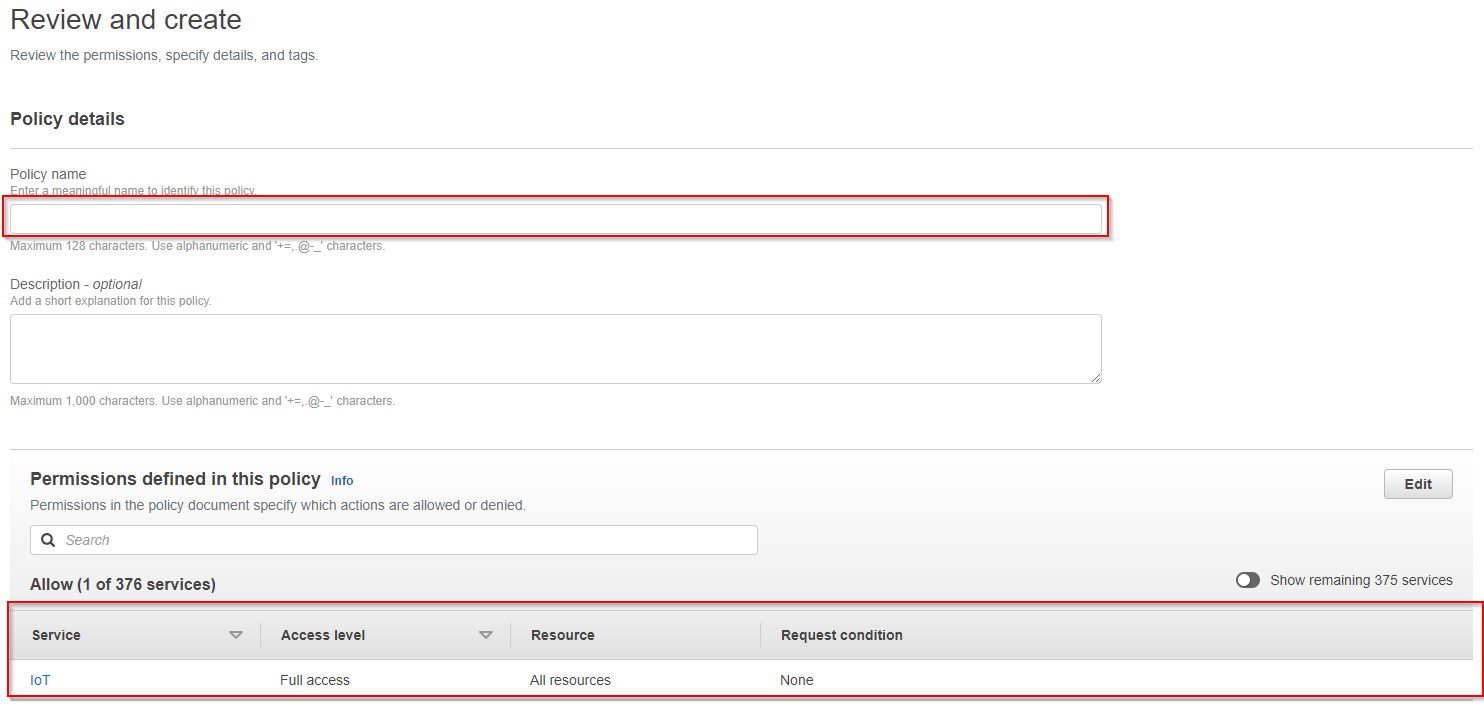

  9. Give your policy a name, make sure that you have full access on the summary. finally hit Create policy

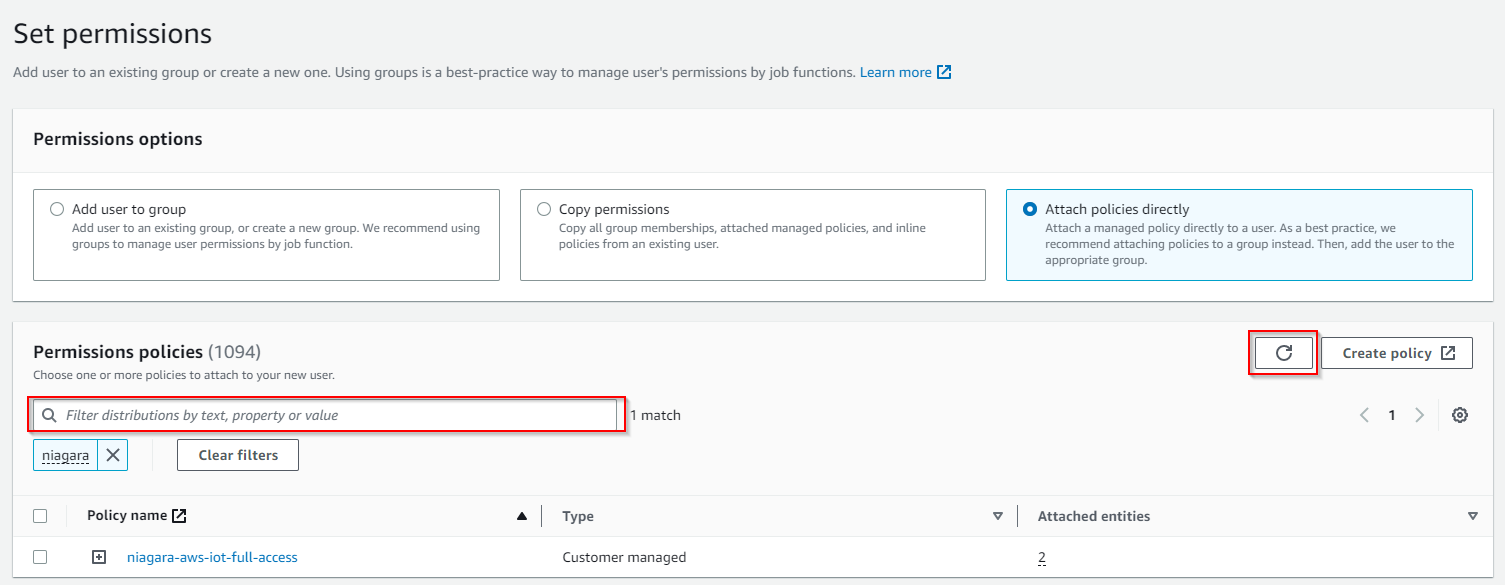

  10. Now go back to the "Add user" page hit refresh (top right), look for your policy on the search field, select it and click Next.



  11. Add tags (optional). Then hit Next

  12. Finally hit Create User.

  13. Your User was successfully created. Click on View user

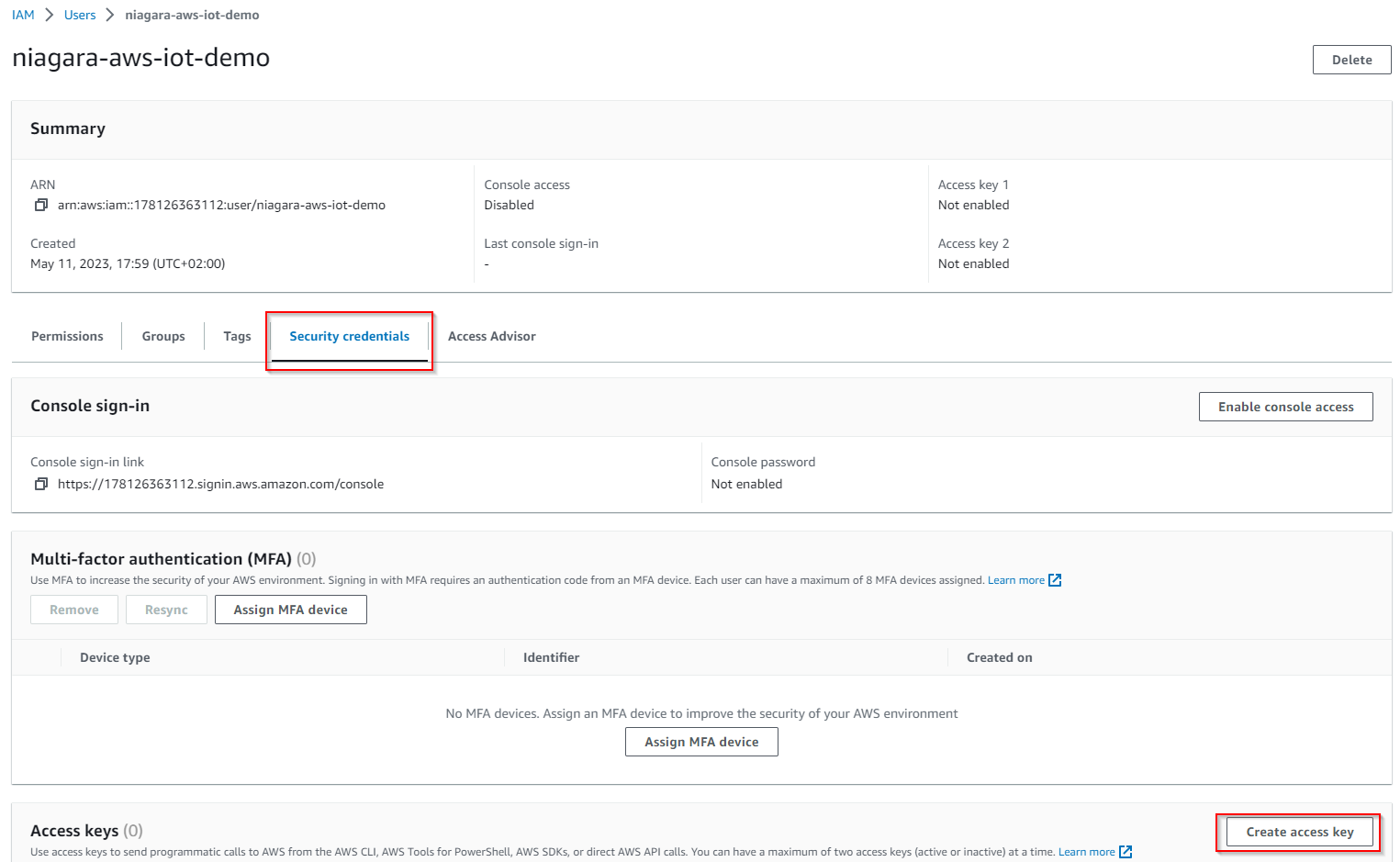

  14. Go in the Security credentials Tab and create an access key

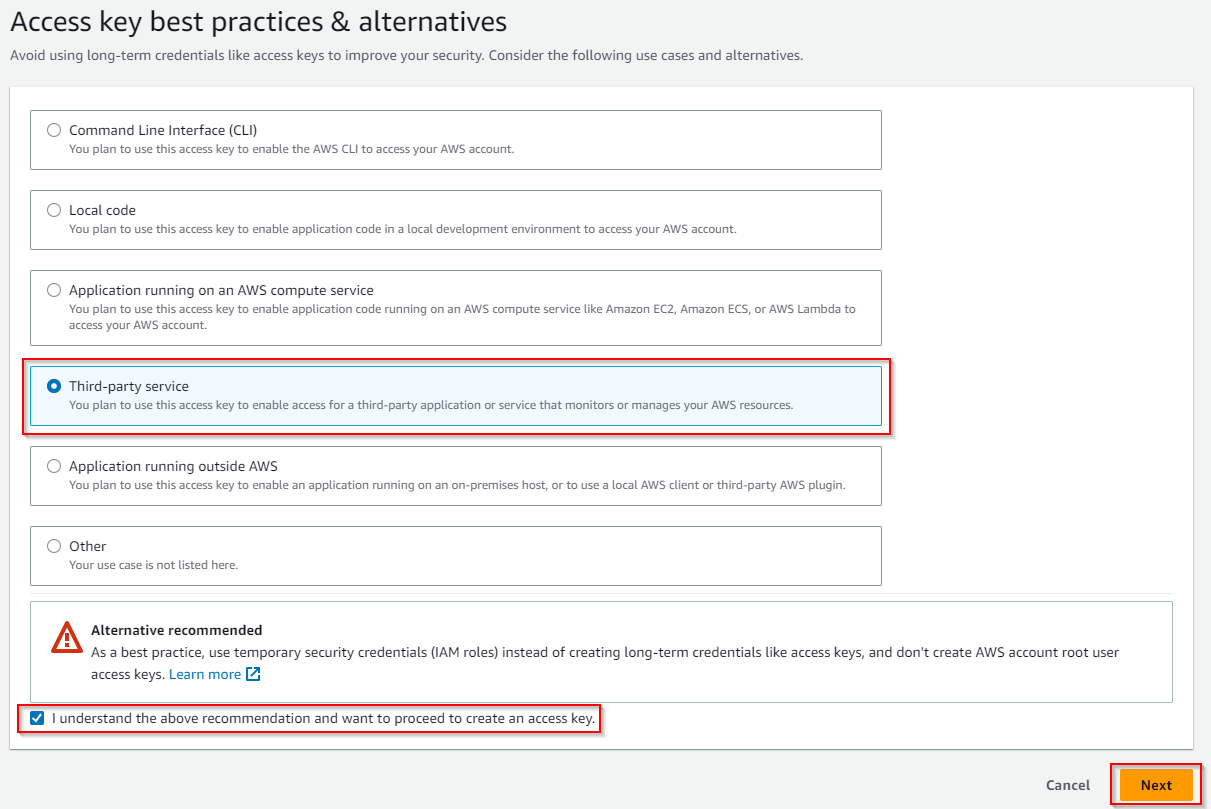

  15. Select Third-party service, check the "I understand..." checkbox and click Next

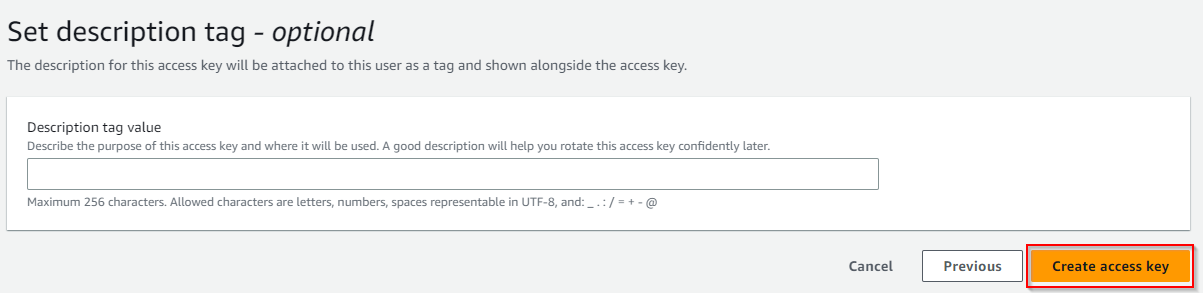

  16. Click on Create access key

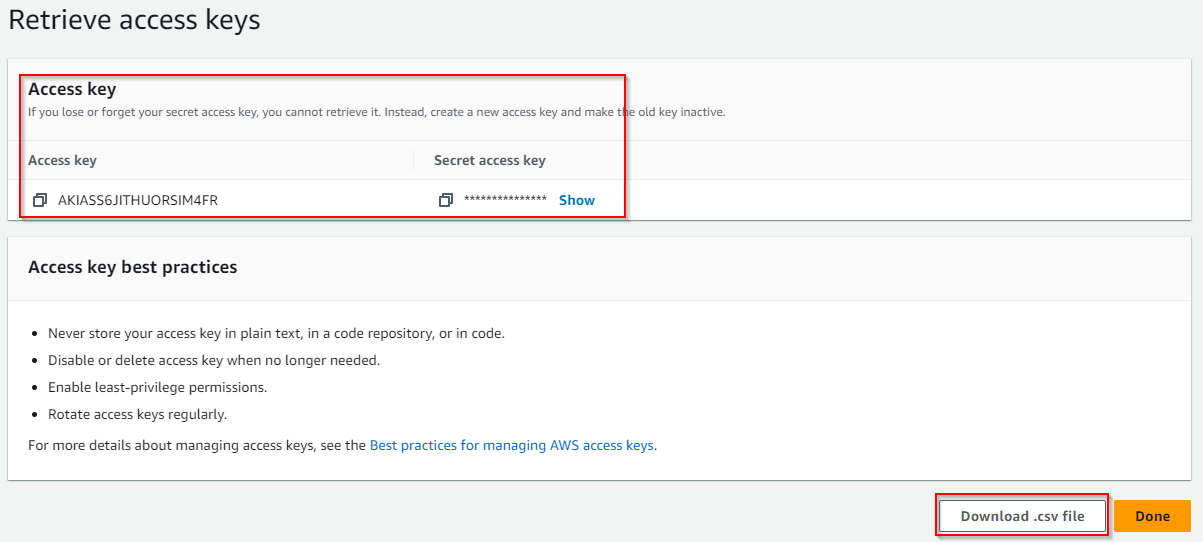

  17. Retrieve you Access keys (either copy paste your values or download the .csv file). Keep them they will be needed to setup the connector in your workbench



Setup Devices certificates

There are two ways to setup a device certificate. You can either

  • create a certificate from scratch in aws or

  • import a certificate created in the workbench

Only one is required.

A - Create a certificate from scratch in AWS


AWS uses Asymmetric keys for device authentication and authorization.

To create a key pair and a certificate follow these steps:

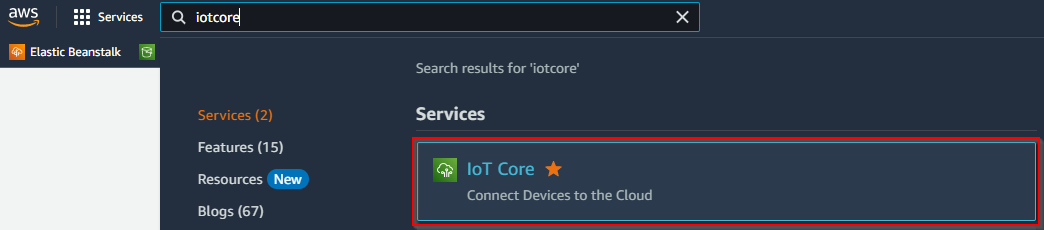

  1. Go to the IoT Core service on the AWS console.

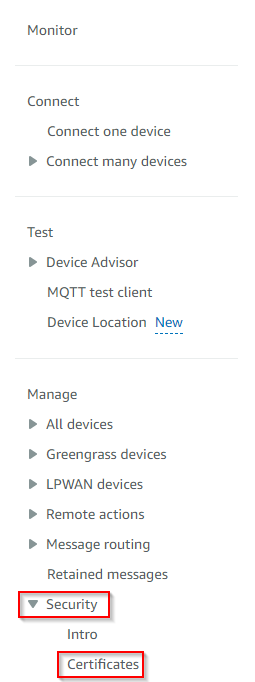

  2. Then security → Certificates

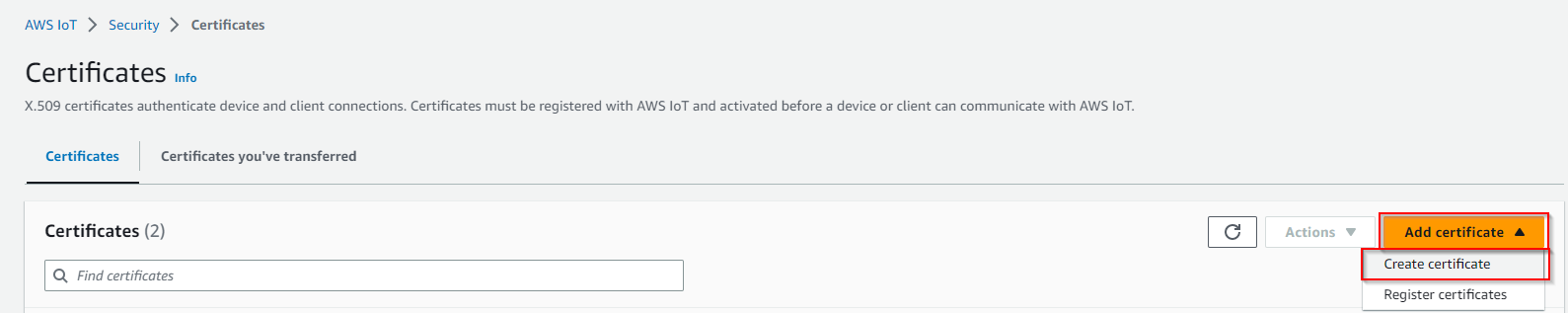

  3. On the top right corner hit Add certificate.

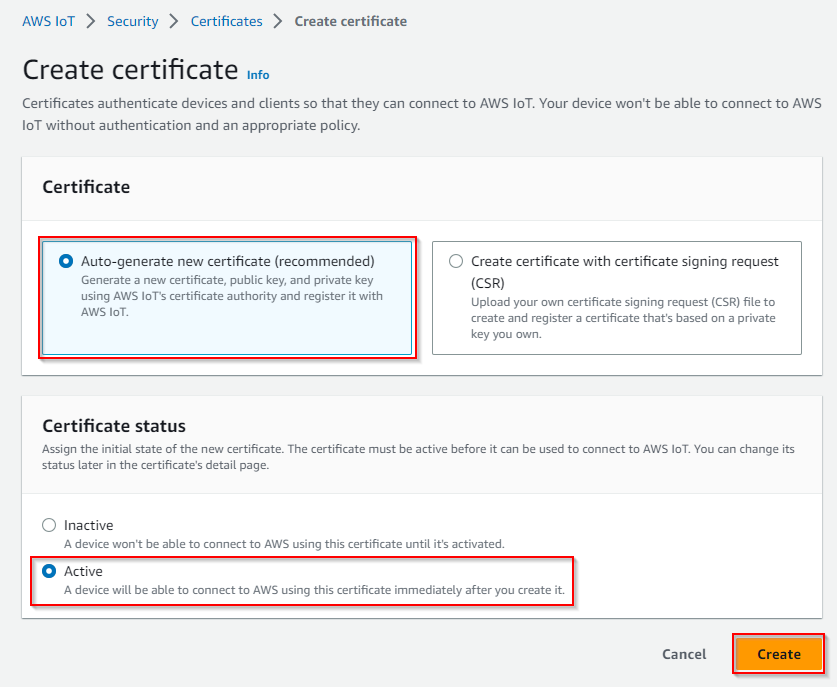

  4. Then Select Auto-generate new certificate, select Active and hit Create

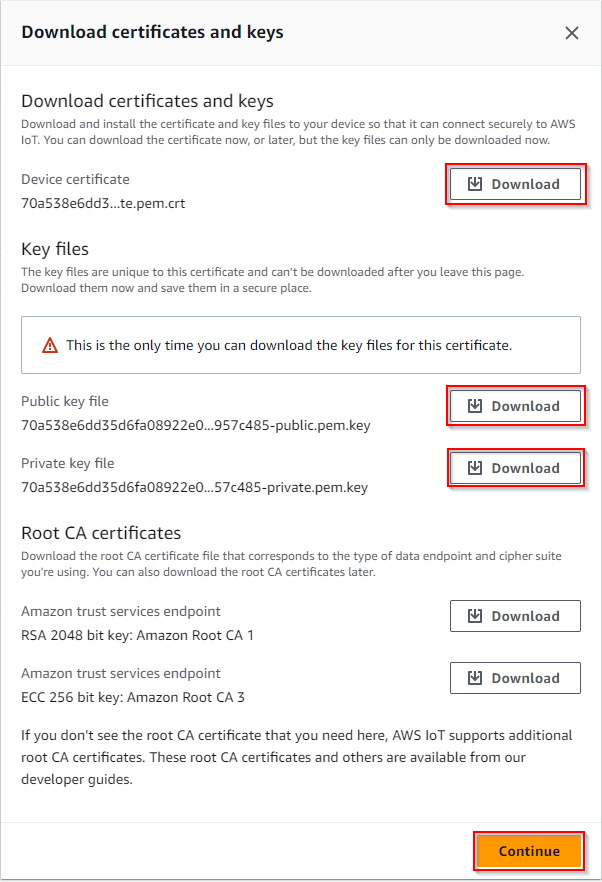

  5. Download the certificate, the public key (optional) and the private key




  6. You will also need the AWS CA key file, you can download it here: VeriSign-Class 3-Public-Primary-Certification-Authority-G5.pem.

B - Import a certificate created in the workbench


  1. Open the “Certificate Management” Tool

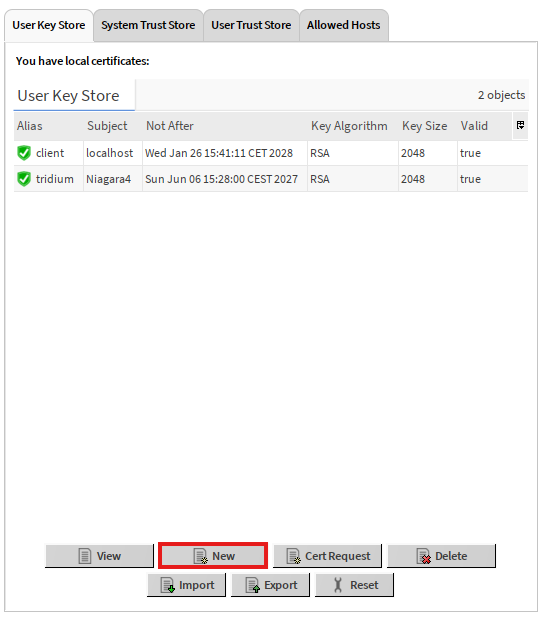

  1. Create a new certificate

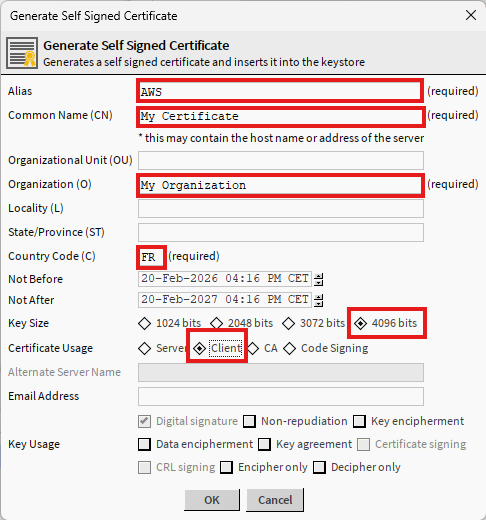

  1. Fill the required slots to create a client certificate. A 4096-bit key size is recommended but not mandatory.

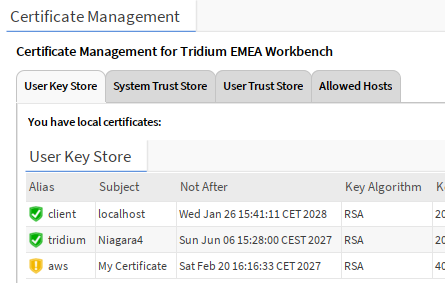

  1. Validate and wait; the new certificate will appear shortly

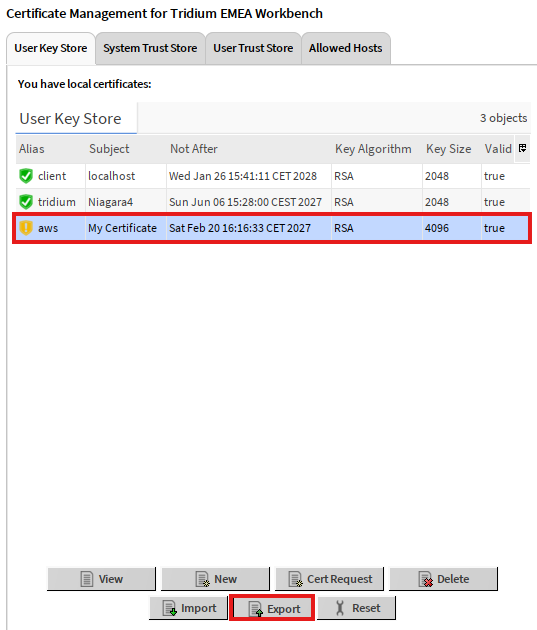

  1. Select your new certificate and export it

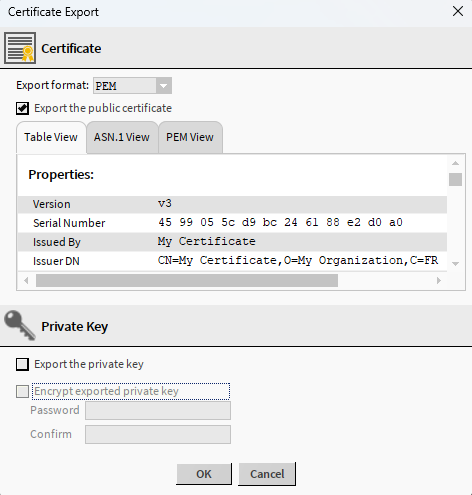

  1. Export the public certificate without its key


  1. Go to the IoT Core service in the AWS console.


  2. Then security → Certificates

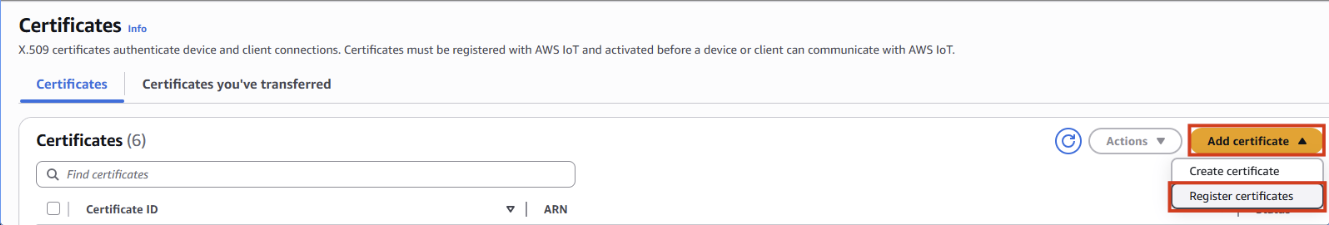

  3. Click “Add Certificate” then “Register certificates”

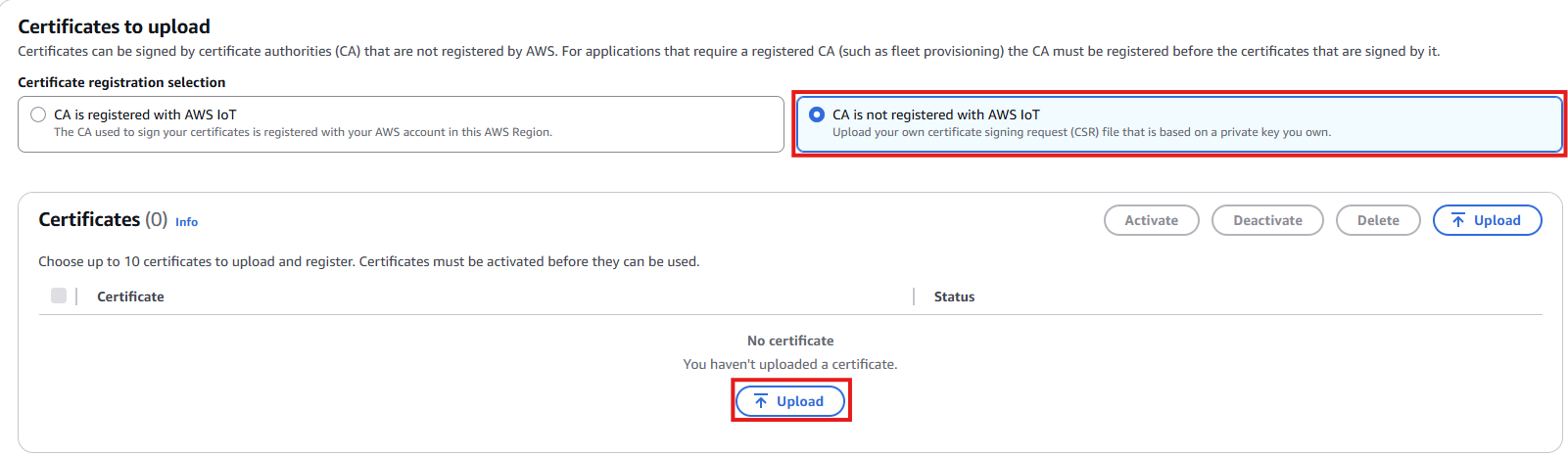

  1. Select “CA is not registered with AWS IoT” and upload your certificate

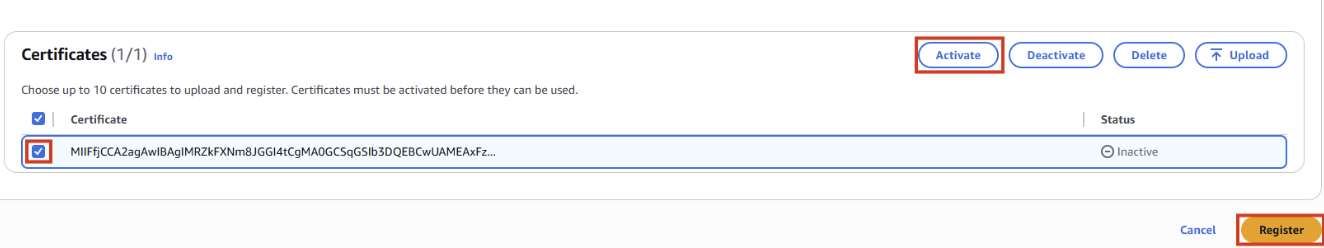

  1. Select your certificate, Activate it and Register it.




Attach a policy to your certificate

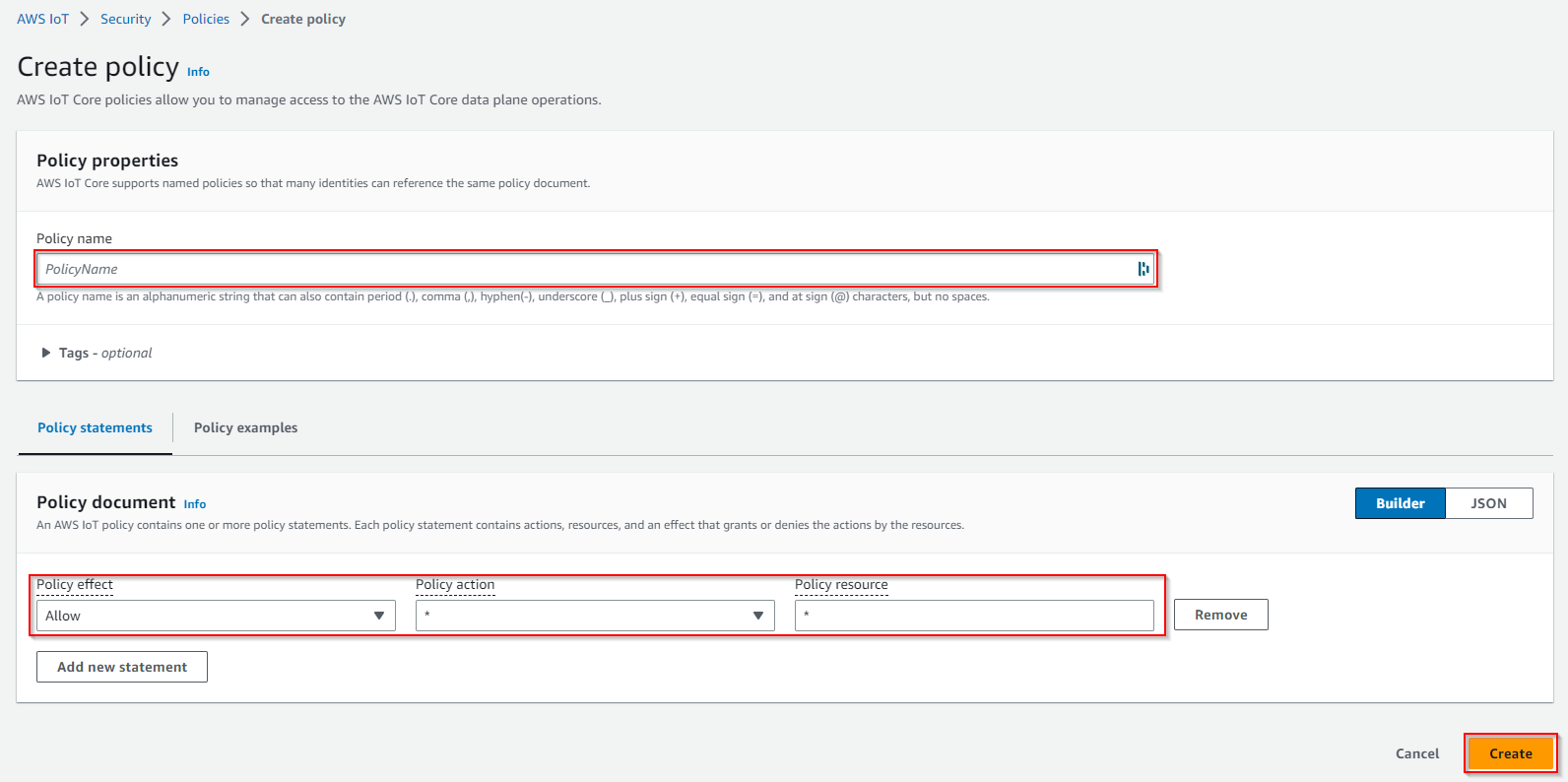

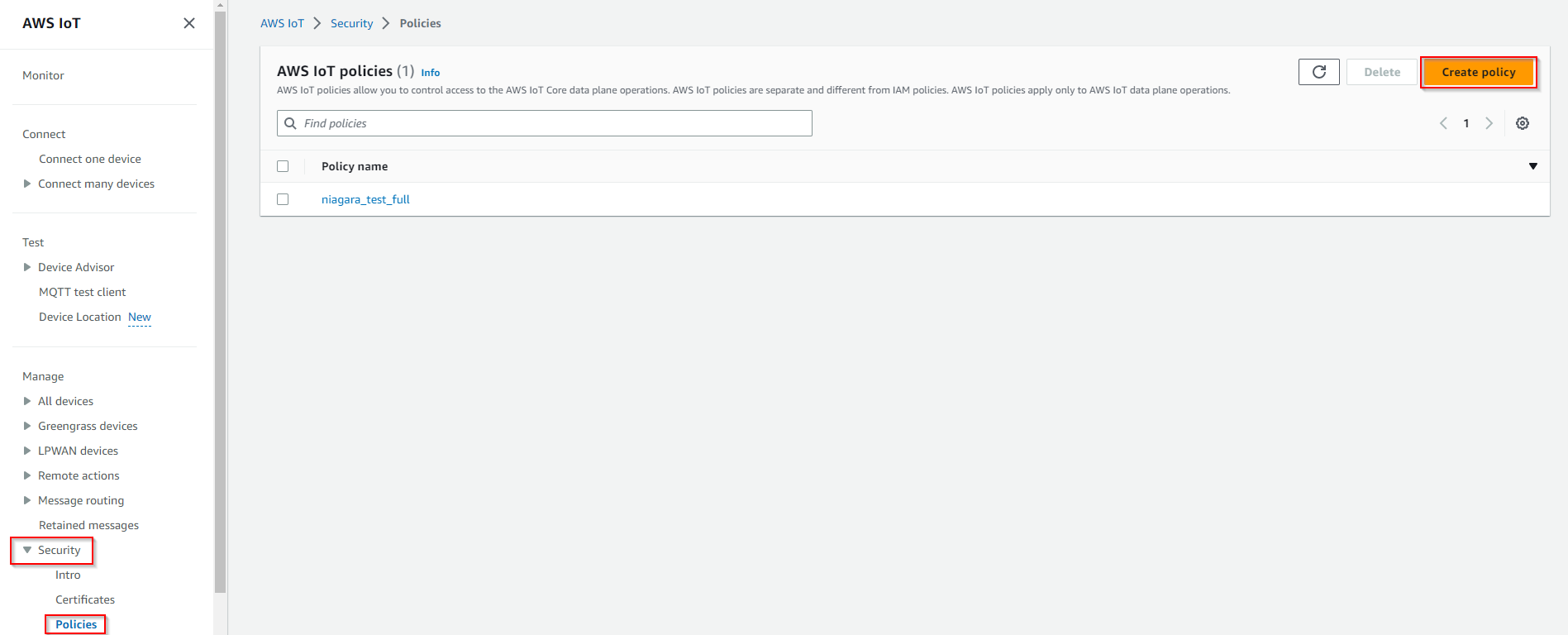

  1. Now go to Security > Policies and hit Create Policy




  1. Give your policy a name. select the "Allow" policy effect, and put "*" in the policy action and policy resource. Then hit Create

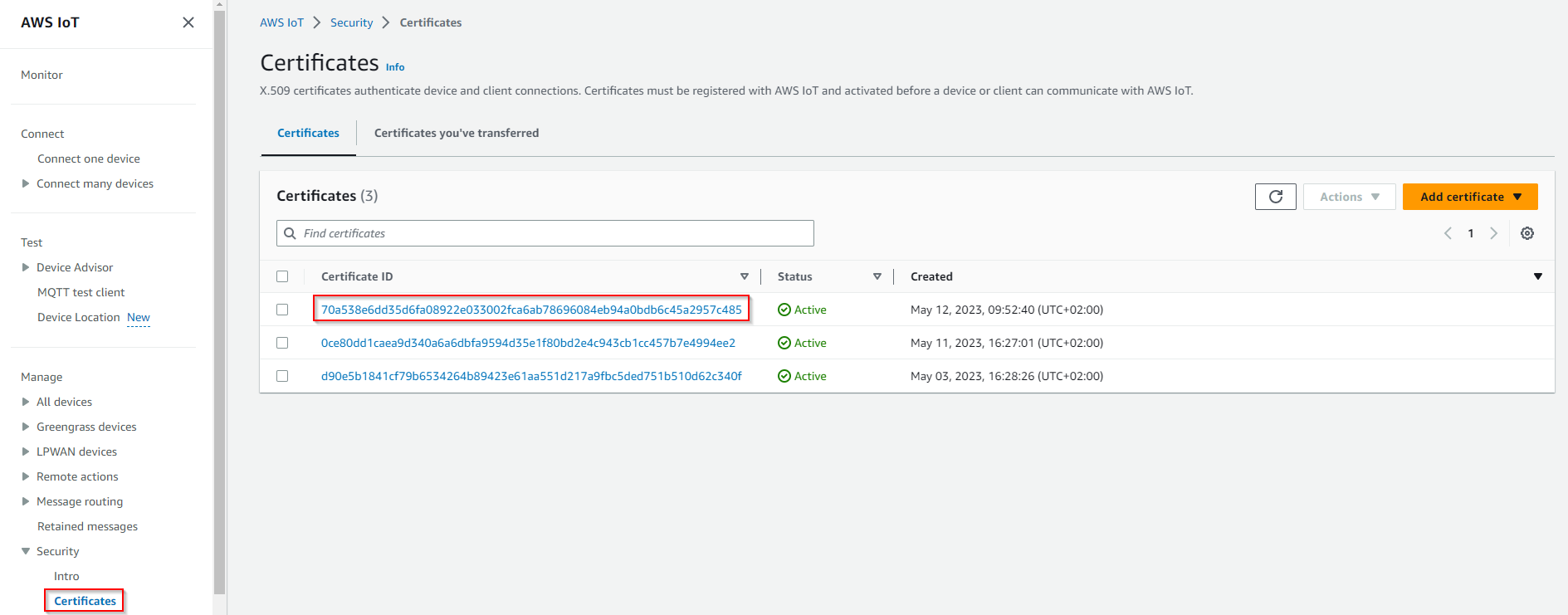

  2. Go back to certificates. Choose the certificate you created earlier (check the date).

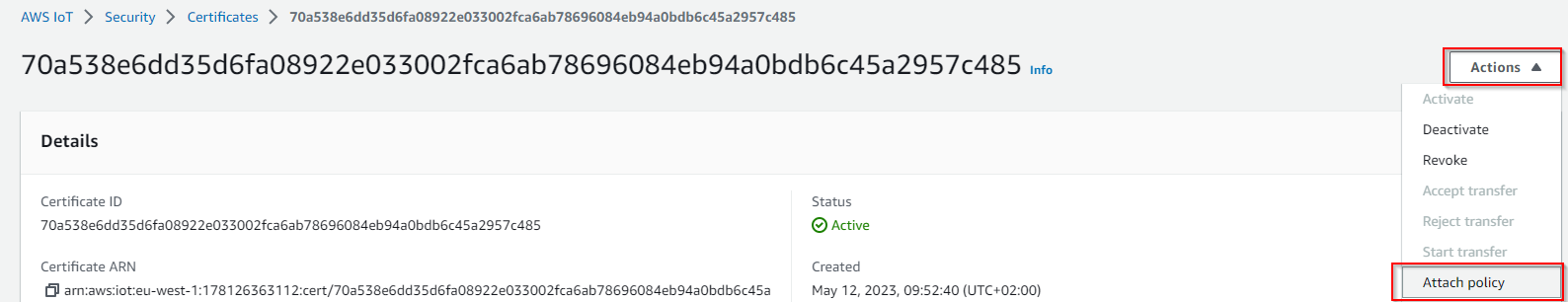

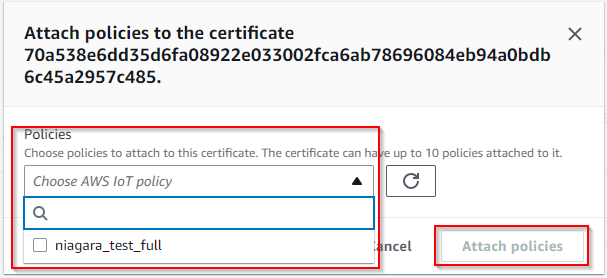

  3. Under Actions select Attach policy




  4. Select your policy then hit Attach.

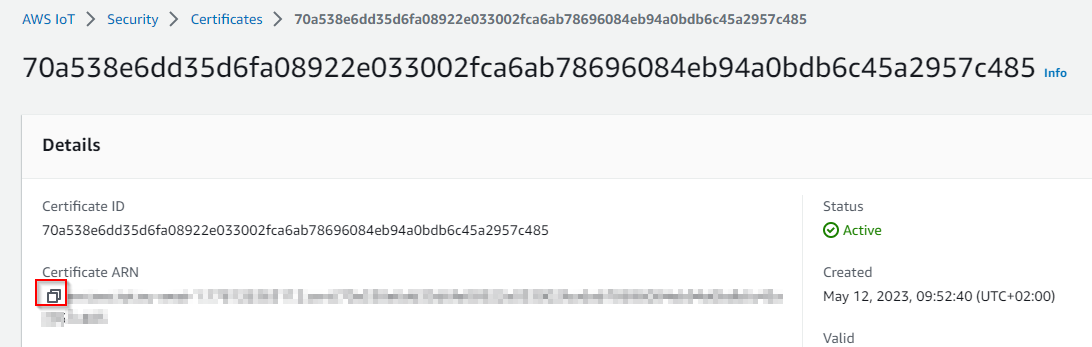

  5. Now note down your certificate ARN, we will need it later.



API endpoint

Finally you will need your API endpoint

To find it follow these steps:

  1. Go to the IoT Core service on the AWS console.

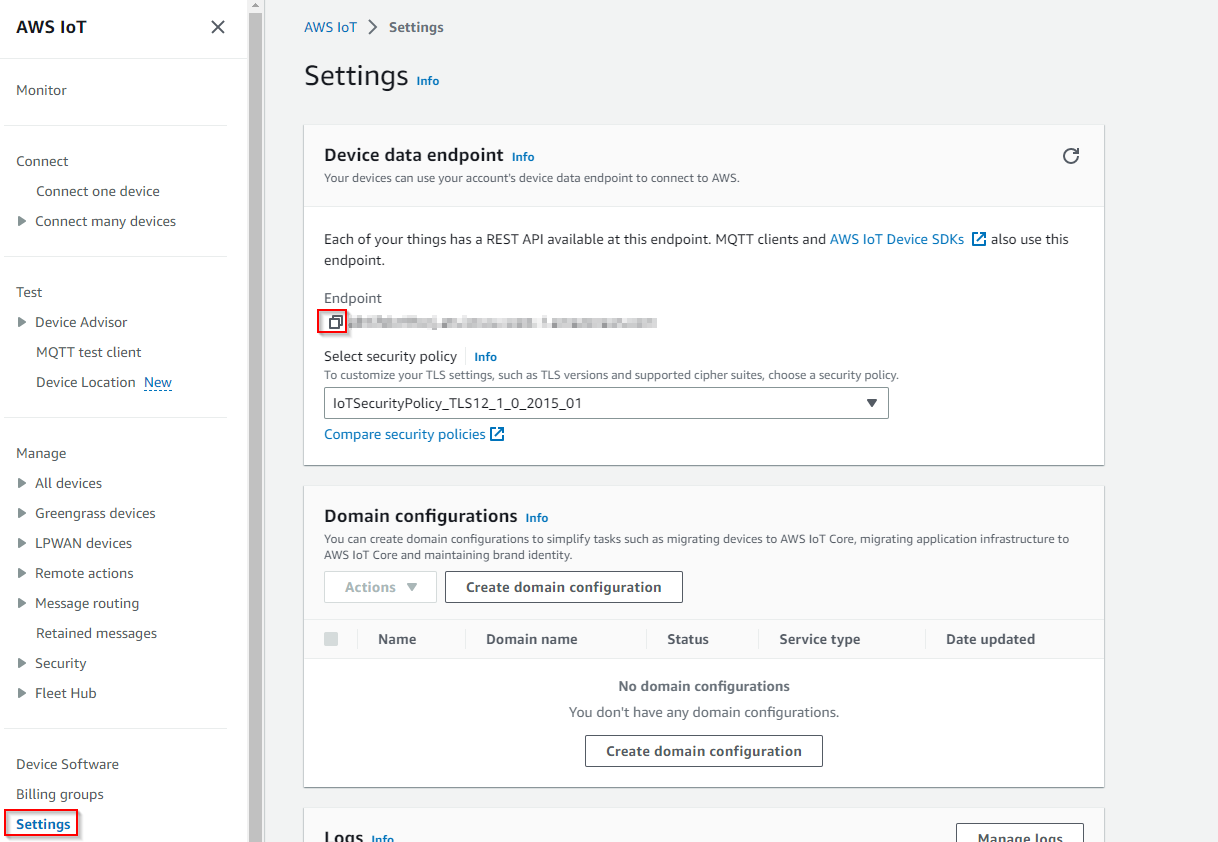

  2. Go to Settings, and copy paste your endpoint


Recap

Let's recap, after all theses steps you should have several things:

  • The credentials csv file for AWS user that contains the client access id and secret.

  • The ARN certificate

  • the API Endpoint

Depending on how you implemented your certificate

  • From scratch on AWS, you will have

    • The certificate file

    • The private key file

    • The public key file (optional)

    • The AWS CA key file

  • From a certificate created in the workbench

    • The certificate will already be in your workbench

Congrats !!! You finished the AWS setup go to next step:

Next Step

Step 2 Set up AWS connector for devices points and references
