CommutativeBlock

Description

Operations are commutative if the order of operands can change without changing the result. So the same block is used to do the following operations:

  • Sum

  • Average

  • Product

  • First

  • Last

  • Min

  • Max

  • Or

  • And

  • Count

These operations are all applied on columns to compute a result and columns order doesn't matter.

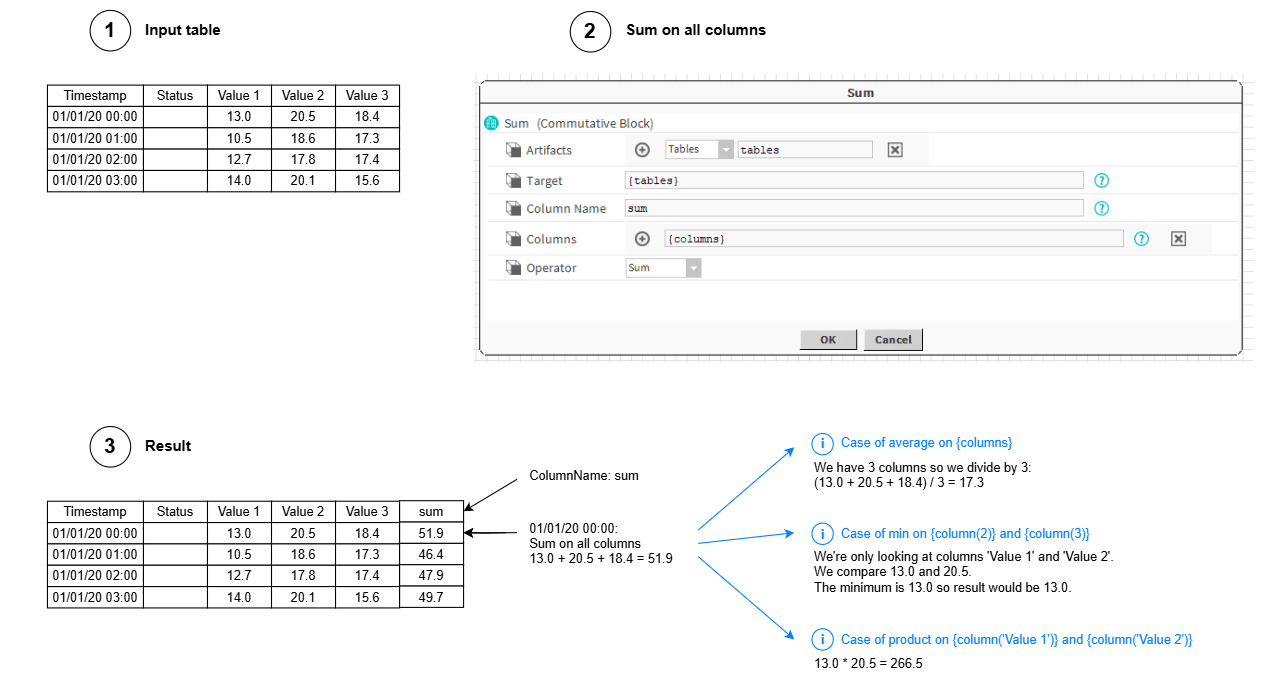

The operations will happen a new column to the previous tables, so all the columns will remain available and an additional column will appear.


Implementation

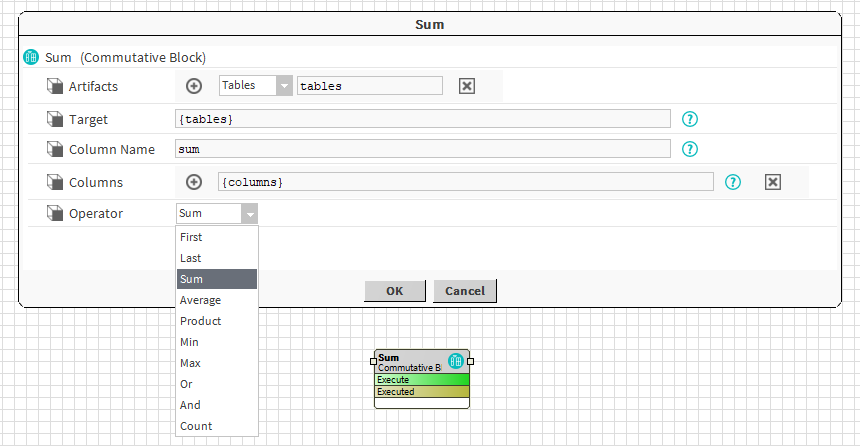

Properties

  • Artifacts: Artifacts created by this block

    • Tables: the resulting table.

  • Target: the table on which the operation will be applied.

  • ColumnName: The name of the new column containing the result.

  • Columns: The columns to compute on. SFormat should be used, basically column() or columns() functions.

  • Operator: The operator to use.
