ExtractColumnBlock

Description

This block is used to extract columns from a table. This is usually used before a terminal (to save only useful columns).

Implementation

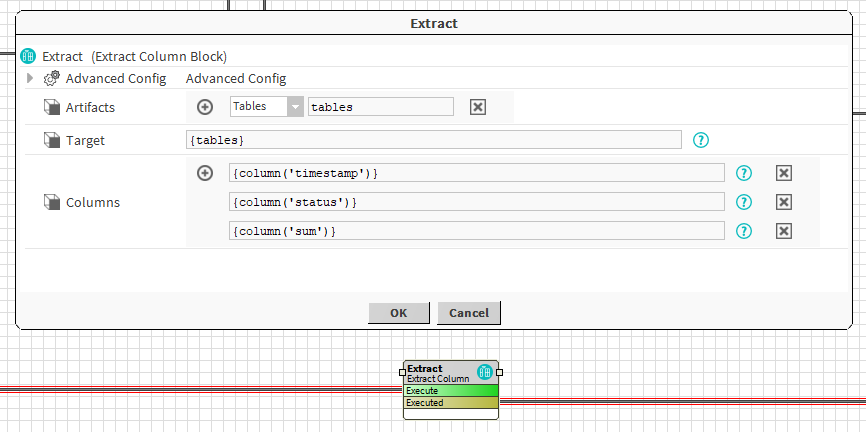

Properties

• Artifacts: Artifacts created by this block


  • Tables: the resulting table.

• Target: the table from which columns will b eextracted.

• Columns: The columns to keep. Use SFormat (column/columns functions or artifact).

Advanced Properties

• ColumnName: SFormat used to customize the name of the extracted columns.

Summary
