AddCategory

Summary

This block is used to add a category in the CategoryService.

Implementation

• Drag and drop the block from the palette

• Link the "execute" action from the "executed" topic of the previous block

Example

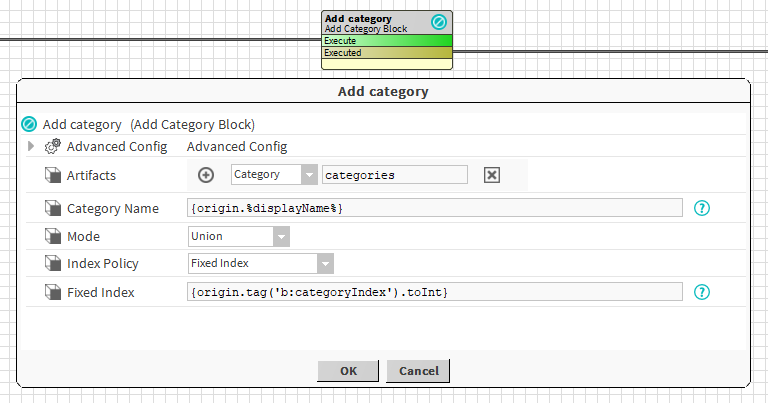

This block is triggered based on a Node (the origin). A category is built with the name of the Node. The category index is set from the tag "b:categoryIndex".

 Properties

• Artifacts: Artifacts created by this block
  Category: category created in the CategoryService

• CategoryName: SFormat to define the name of the category. Ex: hvac

• Mode { Union, Intersection}: The category mode to create

• IndexPolicy {First Available Index, Increment Last Index,  Fixed Index}: Define how the category index should be handled since this index should unique.First Available Index: The block will look through all the existing categories and pick the first available indexIncrement Last Index: The block will find the category which has the highest index and increment it for the new one.Fixed Index: The block will set a fixed index defined in the Fixed Index slot. It's better to use a fixed when you want to have the same indexes on all of your stations because you share users and don't want to re-configure them on each station because the same categories have different indexes. Ex: You can use a tag to define the index.

• FixedIndex: SFormat to define the category index.

AdvancedConfig

• IndexUpdatePolicy {Ignore ; Update}:


  • Ignore: If the category is updated by the block, its index won't be changed. Ex: you want to control yourself your category indexes on the category itself.

  • Update: The category index will be updated even if the index has been changed manually. Ex: you updated the tag that was used to define the index, therefore the category index should be updated.



Note

A relation "b:category" is created between the origin of the strategy and the category. So you can reuse it later to retrieve the category easily. See AssignRoleToUser.

Behavior: DO

The category is created in the CategoryService.

Behavior: REDO

The category index might be updated depending on the IndexUpdatePolicy

Behavior: UNDO

The category is removed from the CategoryService.
