AssignInfoSourceToModel

Summary

This block is used to assign an InfoSource to a Node.

Implementation

• Drag and drop the block from the palette

• Link the "execute" action from the "executed" topic of the previous block

• Define the target using SFormat

• Select the Node to assign to

Example

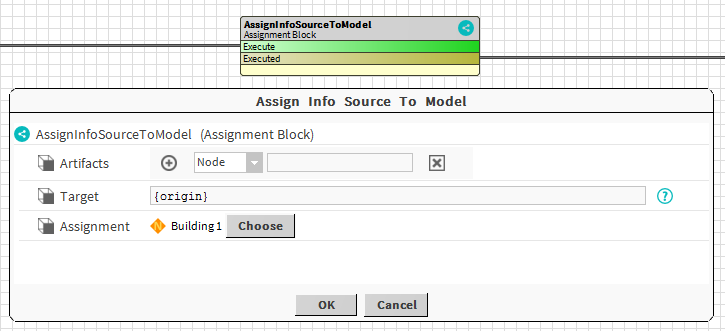

This block will assign the origin (an InfoSource) to the Node "Building1".

 Properties

• Artifacts: Artifacts created by this block


  • Node: The Node the InfoSource is assigned to

• Target: SFormat to define the InfoSource(s) to assign

• Assignment: The Node to assign to

Behavior: DO

The assignment is done.

Behavior: UNDO

The assignment is removed.
