ExtractFromList

Summary

This block only works in the combination of a SourceSelectionTag (btibStructure > NodeTag > SourceSelection). It is used to extract its generated tag values and to convert them as artifacts.

Implementation

• Drag and drop the block from the palette
• Link the "execute" action from the "executed" topic of the previous block



Example

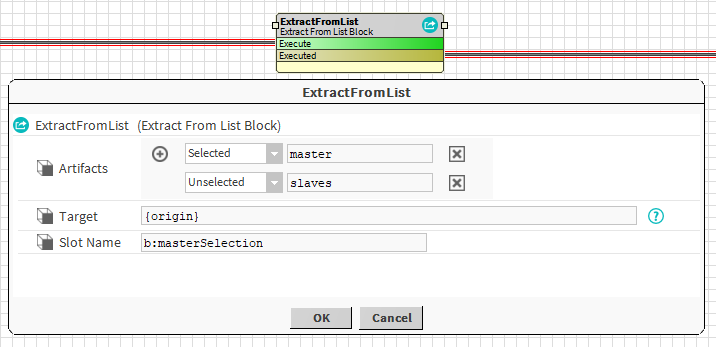

This block creates two artifacts:

• master: contains the selected entities by the SourceSelection tag contained in the origin (an office or a meeting room)
• slaves: contains all the other entities of the list of the SourceSelection tag

 Properties

• Artifacts: Artifacts created by this block

  • Selected: component selected in the list created by the SourceSelection tag
  • Unselected: all the other components in the list

  • All: all components in the list (including both selected and unselected)
• Target: SFormat to define the component that contains the SourceSelection tag
• SlotName: SFormat to define the name of the tag in the target that is given by a SourceSelectionTag

Behavior: DO & UNDO

Creates artifacts with values given by the SourceSelection tag.
