Summary
This blocks is used to remove a dynamic slot from a target. It is usually found in macros (and rather occasionally in automatic strategies).
Implementation
-
Drag and drop the block from the palette
-
Link the "execute" action from the "executed" topic of the previous block

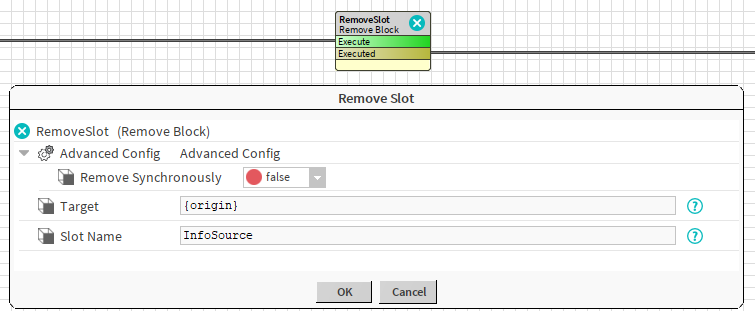

Example
Properties
-
Target: SFormat to define the component which owns the slot. Ex: the origin
-
SlotName: SFormat to define the name of the slot to remove. Ex: "InfoSource" (it has to be a dynamic property), HistoryExt, AlarmExt...
Advanced Properties
-
RemoveSynchronously: Determines if the remove operation will be done synchronously or not. For retrocompatibility reasons, the value is set to false, so the remove operation will be done at the end of the strategy (allowing you to do other operations on the slot before its deletion). Nevertherless it is advised to set this to true for most situations.
Behavior: DO
The slot is removed.
Behavior: UNDO
This block cannot be undone.
