Description
This block is used to import a schedule in a data strategy. Constant will then be merged with data extracted from database using sum, subtraction, product and so on.
When merged with a time table, the schedule is read according a policy (see summary below):
-
Extract direct value: at a given timestamp, the value of the schedule will be extracted as is
-

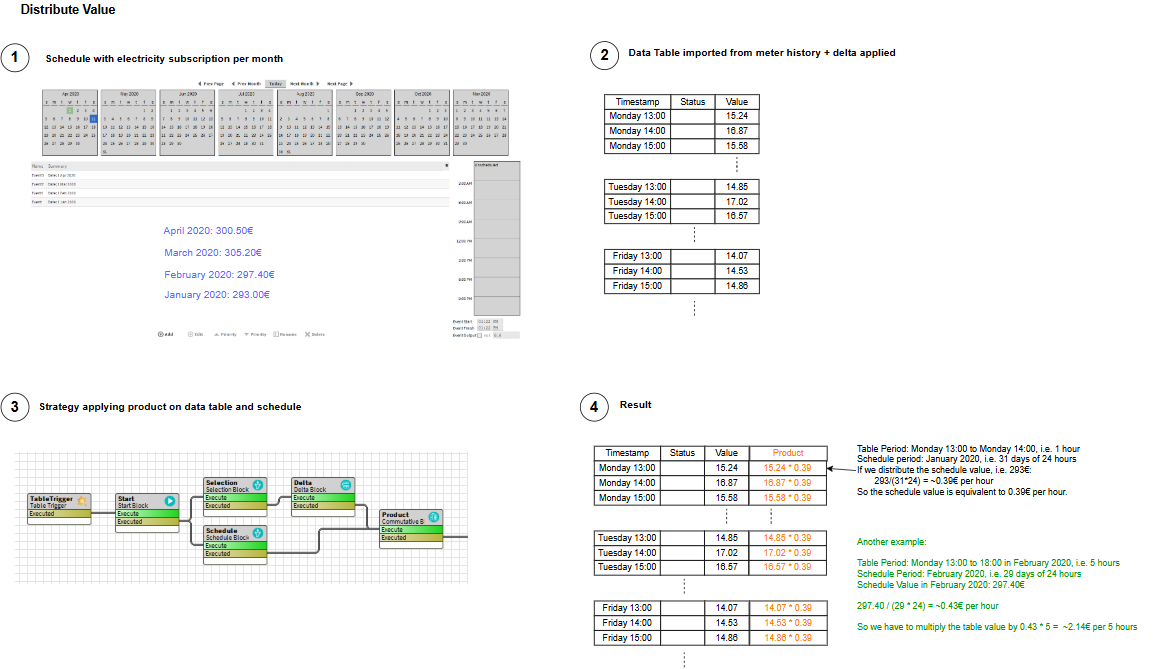

Distribute value: between two timestamps, the block will compute the value distributed on the whole period
Implementation
-
Create a schedule containing values at given periods (it can be weekly events or special events)
-

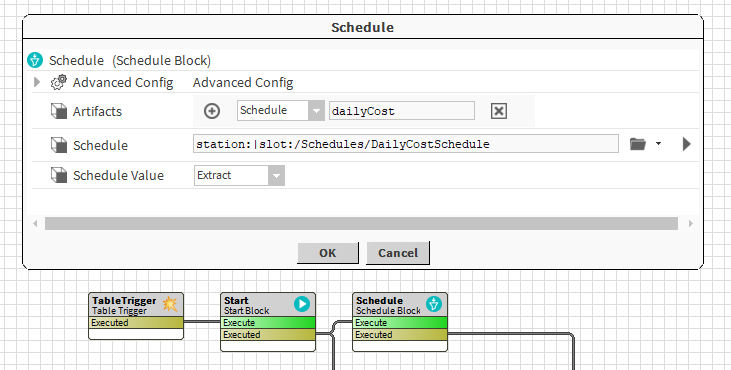

Drag and drop a schedule block from the palette to a data strategy
-
Fill the properties "schedule" and "schedule policy"
Properties
-
Schedule: the ord of the schedule to import
-
SchedulePolicy: see above explanation
Artifacts
-
Schedule: contains the schedule
Summary
