FlexWidgetLoader

Description

The FlexWidgetLoader allows to load a FlexWidget as a WebWidget without a FlexView.




Implementation

  • Drag and drop the widget into a px.

  • Define the Ord of the Component to use as a base for the FlexWidget in the WbViewBinding.

  • Define the FlexWidget to load in the FwId field and click on OK.

  • Reopen the Properties dialog when the FlexWidget is loaded to change its values.

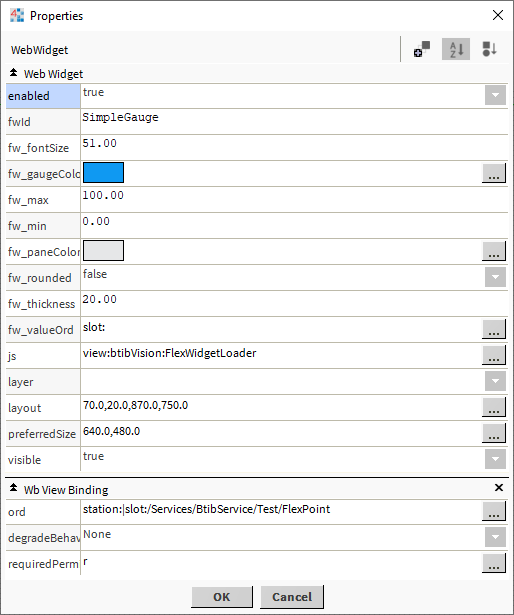

Properties

  • FwId: The id of the FlexWidget.

  • Fw_*: The properties of the FlexWidget specified in the FwId field.

    ⚠️ To load the dynamic properties (those starting by 'fw_'), first fill the FwId field, then click OK, and reopen the Properties dialog when the FlexWidget is loaded.
