Summary
This block is used to filter the elements of an artifact based on a predicate. The filtered artifact will then be used in the following blocks.
Implementation
-
Drag and drop the block from the palette
-
Link the "execute" action from the "executed" topic of the previous block
Example

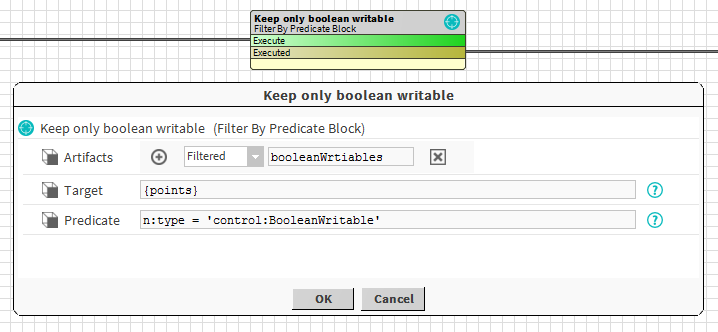

This block is based on a previous artifacts that retrieved some points. It will filter the predicate entities to keep only the ones of BooleanWritable type.
Properties
-
Artifacts: Artifacts created by this block. Be careful, the artifact is an array, you will need sometimes to use .first in a SFormat to use it.
-
Target: SFormat to define the target (queries, ord, artifacts etc.)
-
Predicate: The predicate to match.
Behavior: DO & UNDO
An artifact will be created.
