Summary
This block is used to create a new artifact from a SFormat. This artifact will then be used in the following blocks.
Implementation
-
Drag and drop the block from the palette
-
Link the "execute" action from the "executed" topic of the previous block
Example

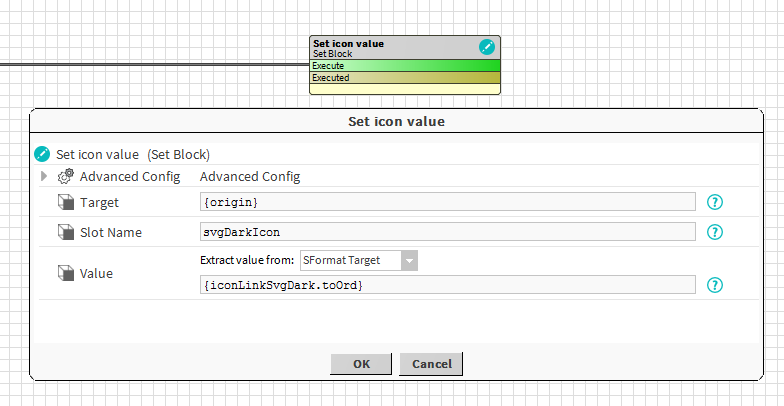

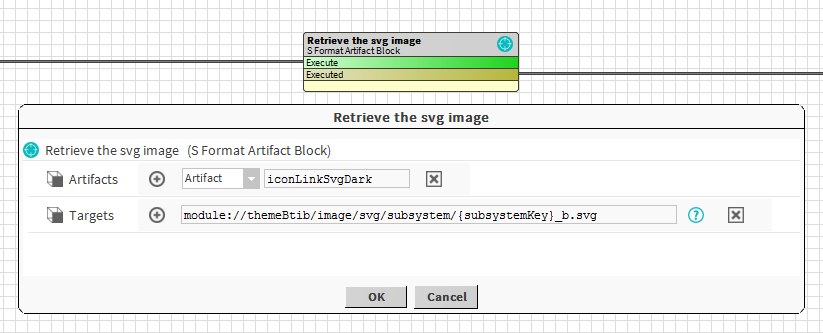

This block creates an artifact representing an icon retrieved from a subsystem in a theme module. The Artifact (the ord to the icon) is then used in another block to set a slot.
Properties
-
Artifacts: Artifacts created by this block. Be careful, the artifact is an array, you will need sometimes to use .first in a SFormat.
-
Targets: SFormat to define the targets.Note you can combine several targets in the same artifact.
Behavior: DO & UNDO
An artifact will be created.
