NodeGroup

Description

The NodeGroup component represents a group of Nodes of the same aspect and allows the sources to be assigned directly to several Nodes.

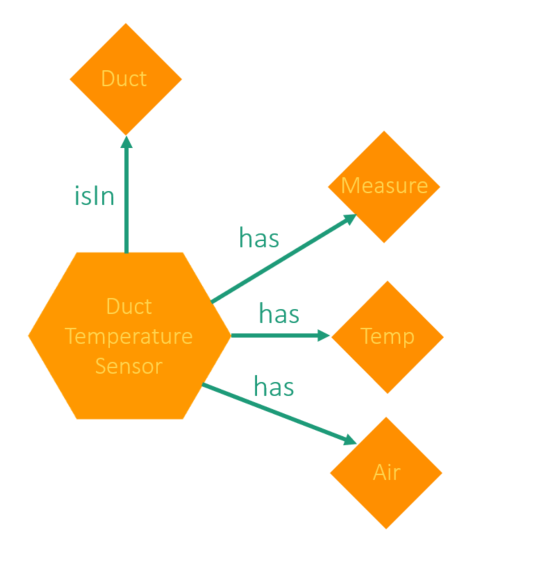

A NodeGroup can be linked to the Nodes in the model:

• Via the relation isln: for the Nodes of which this group is a part (e.g. the "Duct Temeprature Sensor" NodeGroup is part of the "Duct" Node)
• Via the relation has: for the Nodes that are part of this group (e.g. the Measure, Temp and Air Nodes are part of this NodeGroup)

Implementation

• Add a NodeGroup in a NodeGroupDefinition
• Add has relations with Nodes of the same aspect (usually in different trees)

Properties

See Node properties

Actions

See Node actions
