Step 3 Configure the model propagation triggers

Previously, we have only seen the "Synchronize" action and its result. Let's get deeper.

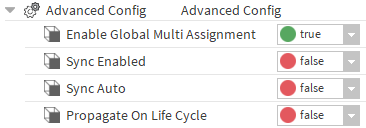

There are many ways to trigger a propagation. We'll see which triggers are available depending on your Aspect's advanced configuration.



In the 47.3 version, those three slots aren't used but will be implemented soon.
Currently, only the Synchronize and SetAsLocal triggers work


Sync Enabled only


Enabling the SyncEnable, will allow you to propagate through

  • the "Synchronize" actions in the Aspects, Node Definitions and Nodes

  • the "Set As Local" action in the Nodes.

"Synchronize" action

Trigger

Since the 46.16 version, the Aspects, NodeDefinitions and Nodes have a "Synchronize" action.

    • On an Aspect or a NodeDefinition, triggering this action will synchronize their children Nodes. Each Node will be exported with its descendants (Nodes with the b:isIn relation).

    • On a Node, it will synchronize the Node.


Since the 47.3 the Node's descendants aren't propagated anymore


Reminder: a propagation will have no effect on the Aspects nor NodeDefinitions of the target station, they won't be created, deleted or updated => the target station MUST have the correct NodeDefinitions to synchronize your Nodes.

Example: Consider the Node "Le Rabelais" which is inside the "Building" Node Definition which is inside the "Location" Aspect.


If you want to synchronize this node, the target Station must have the same "Location" Aspect and the same "Building" NodeDefinition.

Result

There are two possibilities depending on the presence or not of the source and the target Nodes

source Node: present

target Node: present

The target Node will be updated using the informations in the source Node.

  • The BSimple slots or the slots with the userDefined1 flag will be added or updated. No slot in the target Node will be removed.

  • The slots related to the propagation(SourceStation, SyncOriginOrd and b:syncSource) will be updated.

  • The relations will be copied if possible (the relation endpoint must exist in the target station). All the previous relations in the target Node will be removed.

source Node: present

target Node: absent

A copy of the source Node will be created in the target station (same slot values and if possible, same relations).


If the action was triggered on a Node Definition or an Aspect, it is possible to "clean" outdated nodes in the target station. An outdated Node is a Node which was previously propagated but doesn't exist in the source station anymore.

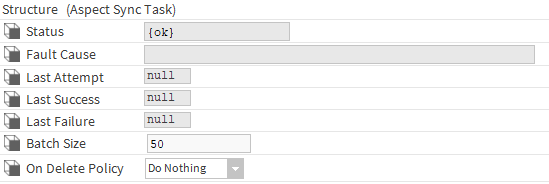

What the clean will do will depend on the "On Delete Policy" in your AspectSyncTask.



Do nothing

-

Disable

The Disable action will be triggered on the outdated Node

Clean

The Clean action will be triggered on the outdated Node

Delete

The Clean action will be triggered on the outdated Node and they will be deleted



"Set As Local" action

Trigger

Since the 46.16 version, the Nodes have a "Set As Local" action.

Result

 In the station the actions was triggered in (the source station), the SourceStation, SyncOriginOrd and b:syncSource slots of the Node will be updated:

    • SourceStation: will take the current station's name.

    • SyncOriginOrd: will target the Node in the current station.

    • b:syncSource: will be set to Local.

This action will be propagated to the stations which also have the same Node (in the same Aspect and Node Definition),

    • SourceStation: will take the name of the source station .

    • SyncOriginOrd: will target the Node in the source station.

    • b:syncSource: will be set to Remote.

Sync Auto


In the 47.3 version, those triggers won't result in any propagation


Enabling the SyncAuto, will allow you to propagate through

  • the Node modification

  • the Batch modification

Node Modification

Trigger

In a Node, the modification of a:

    • slot containing an "aoo" facet

    • relation which isn't from a nodeTag

 will trigger a propagation if the Node isn't disabled.

Result

The result is the same as for the "Synchronize" action.


Batch Modification

Trigger

The modification of the model using the

    • Node Creator

    • Node Drawer

    • btibApi

will also trigger a propagation

Result

The result is the same as for the "Synchronize" action. Due to some limitations, the closest parent containing the modified or created elements will be synchronized.

Example: In the node manager, if you disable some Nodes, the parent Node Definition will be synchronized.


Propagate On Life Cycle

In the 47.3 version, those triggers won't result in any propagation

Enabling the PropagateOnLifeCycle, will allow you to propagate through the

  • Initialize

  • Clean

  • Disable

actions in the Aspects, Node Definitions and Nodes.

The reset Id Action won't be propagated


You can also trigger those actions on multiple elements using the

  • Aspect Manager

  • Definition Manager

  • Node Manager

Initialization

Trigger

An Initialize on any Model Item in the source station.

Result

Triggers the initialize action on the target Model Item in the target station if it exists.

Clean

Trigger

A Clean on any Model Item in the source station.

Result

Triggers the clean action on the target Model Item in the target station if it exists. If the target is a Node, it will be deleted

Disable

Trigger

A Disable on any Model Item in the source station.

Result

Triggers the disable action on the target Model Item in the target station if it exists


The Model Items in the target station are found in different ways:

  • The target Aspect or Node Definition will be the targeted thanks to its name

  • The target Node will be targeted thanks to its id
