Footer

A Footer is a part visible on all pages and located at the bottom (below the cards)

There are 4 ways for creating a header:

• Use the add menu in the settings bar (at the top)

• Drag&drop a card from the btibVision palette (among the list)

• Drag&drop any component from the nav tree, which creates a ComponentViewer card

• Drag&drop any px file from the nav tree, which creates a PxFileViewer header

Properties

Flex Widget Properties:

• Flex Widget: The Id of the Flex Widget to used.

• The specific Flex Widget properties depending on the model of footer

Design:

• Height: The height in px.

Advanced:

• Display: Defines if the Footer is hidden or not. It expects a SFormat condition

Add a Footer

Click on Add button then Footer.

Fill in the modal that opened the required fields then click on Add.

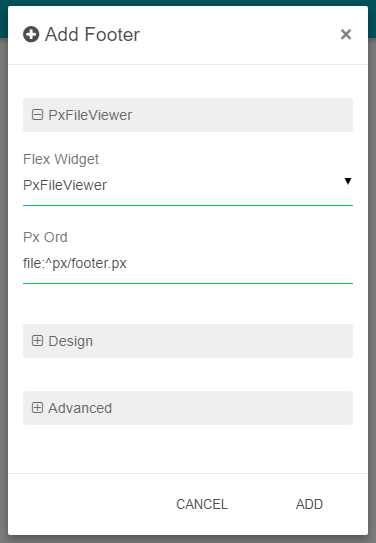

Example of pxFileViewer used in a footer

Edit a Footer

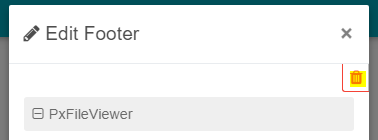

Click on Edit button on the right top of the Footer.

Modify the required fields then click on Ok.

Delete a Footer

Open the Edit modal of the Footer and click on the Delete button on the right top of the modal.

Then click on Yes in the confirmation modal.
