Header

A header represents is a part visible in all pages and located at the top (above the menu).

There are 4 ways for creating a header:

• Use the add menu in the settings bar (at the top)

• Drag&drop a card from the btibVision palette (among the list)

• Drag&drop any component from the nav tree, which creates a ComponentViewer card

• Drag&drop any px file from the nav tree, which creates a PxFileViewer header



Properties

Flex Widget Properties:

• Flex Widget: The Id of the Flex Widget to use

• The specific Flex Widget properties depending on the model of header

Design:

• Height: The height in px

Advanced:

• Display: Defines if the Header is hidden or not. It expects a SFormat condition

Add a Header

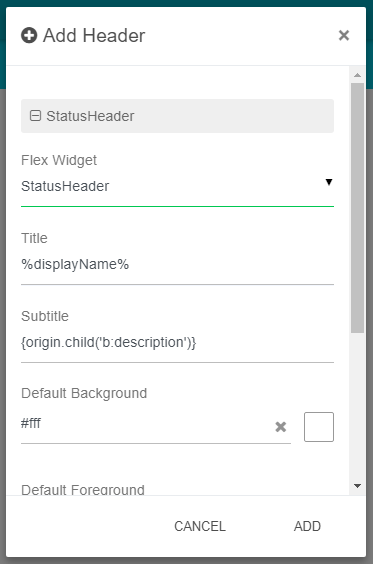

Click on Add button then Header.

Fill in the modal that opened the required fields then click on Add.

Example of the status header

Edit a Header

Click on Edit button on the top right of the Header.

Modify the required fields then click on Ok.

Delete a Header

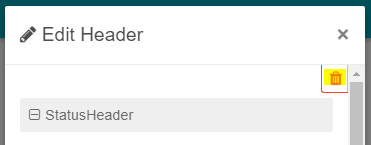

Open the Edit modal of the Header and click on the Delete button on the right top of the modal.

Then click on Yes in the confirmation modal.
