ForwardRecursive

Summary

This block is very similar to the ForwardLoop, .


Implementation

  • Drag and drop the block from the palette

  • Create a link from the "executed" topic of the previous block to the "execute" action

  • Create a link from the "execute" action the the "executed" topic of the next block

Example

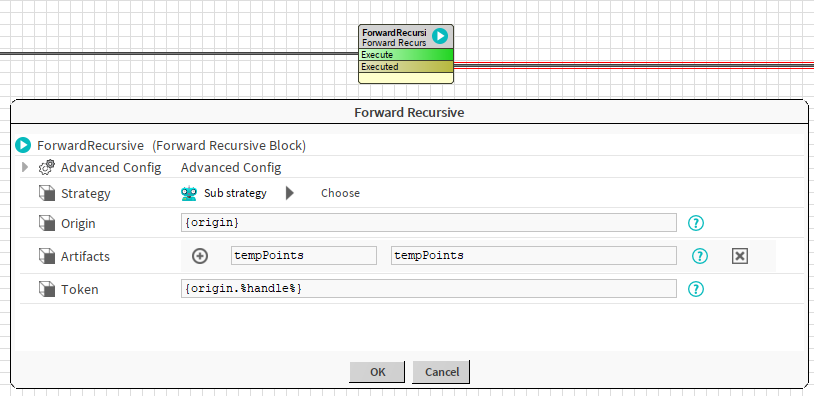

This block calls another strategy called "Sub strategy". The artifact "tempPoints" is transfered with the same name.




 Properties

  • Strategy: Selection of the sub-strategy to trigger.

  • Origin: SFormat to define the origin to transfer to the other strategy

  • Artifacts: Array of artifacts you want to transfer to the sub-strategy. On the left you define the artifacts in the current strategy, on the right, the name you want in the sub-strategy.

  • Token: TODO


Advanced Properties

  • KeepForwardArtifacts: If set to true, will keep the artifacts generated by the forward strategy

  • PersistentArtifacts: TODO


Behavior: DO

The selected strategy is called


Behavior: UNDO

The selected strategy is called in an undo mode
