Description
The NumericOneShot component is used to detect whether a numeric input (of NumericStatus type) is increasing or decreasing. Upon one of these two events, the output Out is set to true for a defined period of time.
Implementation
-
Copy / paste the component into a WireSheet
-

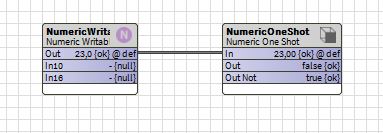

Link the numerical value you wish to monitor to the In slot of the NumericOneShot
-
Set the type of change to act upon (increment or decrement) in the ChangeOn property
-
Specify how long the Out slot of the NumericOneShot should stay true when a change is detected.
(information) Whenever a valid change is detected, the time is reset.
Properties
-
In: Linked to the numerical value to be monitored
-
ChangeOn: Sets whether to detect an increase or decrease in the numeric value
-
Time: The time during which the Out slot will stay true when detecting a change
-
Out: Changes to true when a change occurs and stays true for the period defined in the ChangeOn property.
-
OutNot: Modified at the same time as Out and displays its inverse value.
Actions
-
Fire: Triggers the pulse manually.
