SetNumericFallbackOnDelayExt

Description

The SetNumericFallbackOnDelayExt extension is used to set the fallback of a point after a certain time. It's useful on a logic to go back to a defined value after a while.

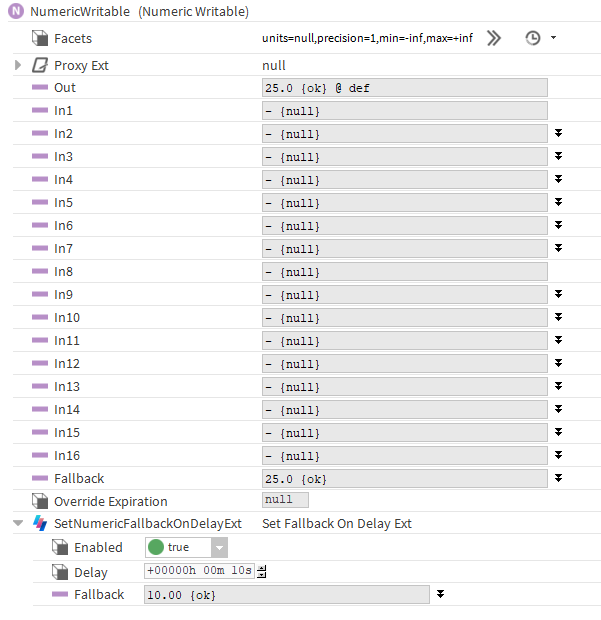

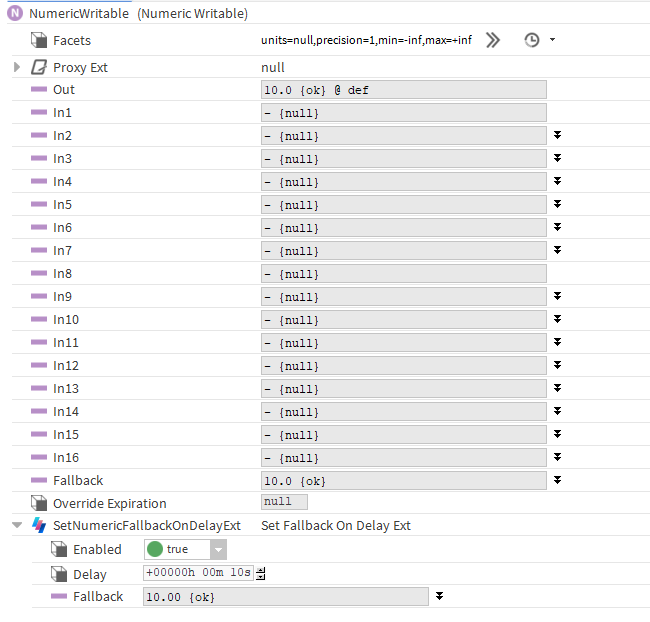

image2020-5-1_0-50-2.png  After 10s -> image2020-5-1_0-49-25.png


Implementation

  • Add the SetNumericFallbackOnDelayExt extension to a Numeric point

  • Enable the extension

  • Define the delay to wait for the fallback value to be applied

  • Define the fallback value

Properties

  • Enabled: Whether to enable the extension

  • Delay: Time to wait after a change in the out value before to reset the point fallback value

  • Fallback: Numeric value to apply to the point fallback slot
