Step 3 Send messages to MQTT broker from Niagara

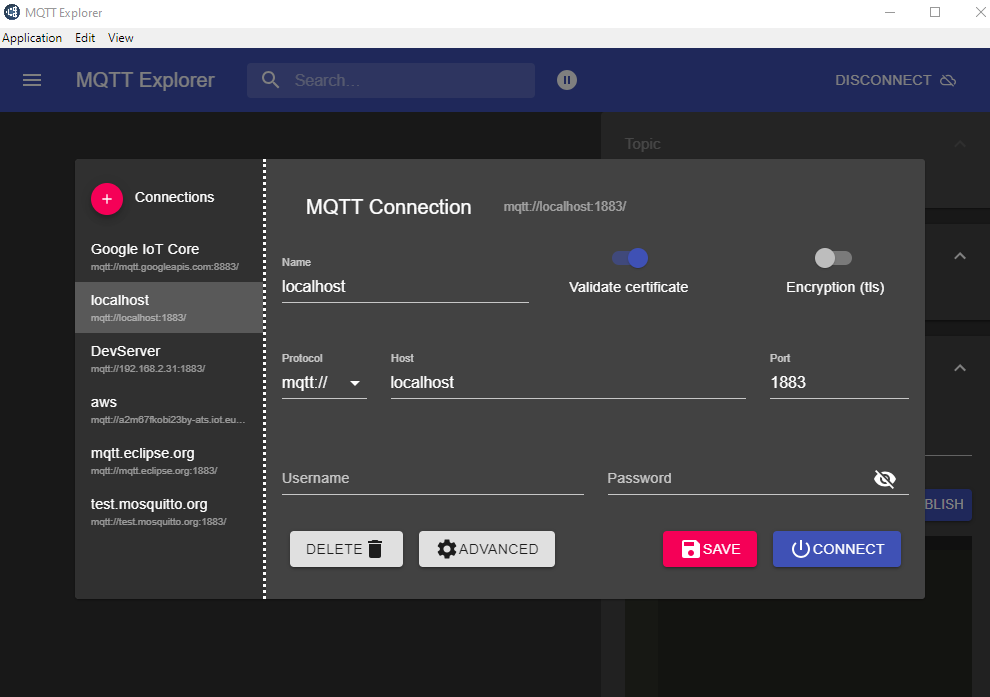

1. Open the MQTT Explorer application. Then connect to the broker.

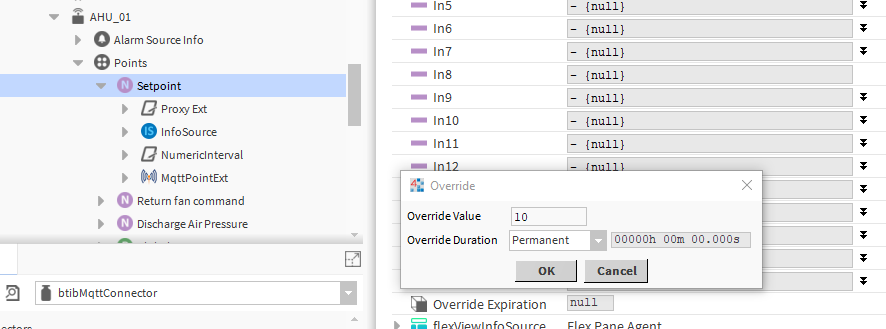

2. Go to your point and trigger a change.

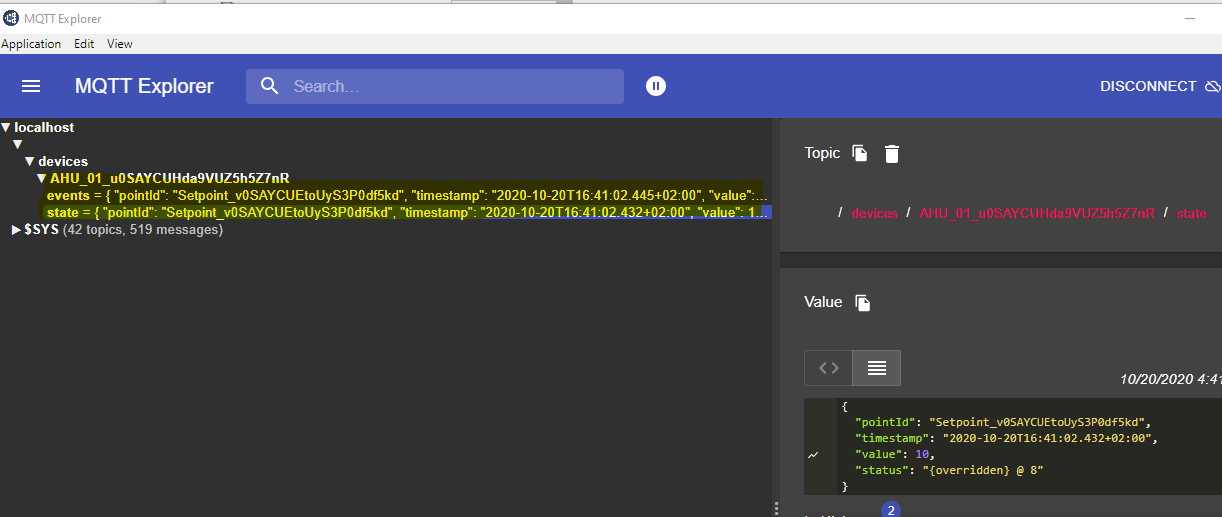

3. Go back to the application And voilà your messages is received!. note that we received 2  events (value change and status change). the body message is the same because by default the templates are the same, to change this go to the connector advanced settings.

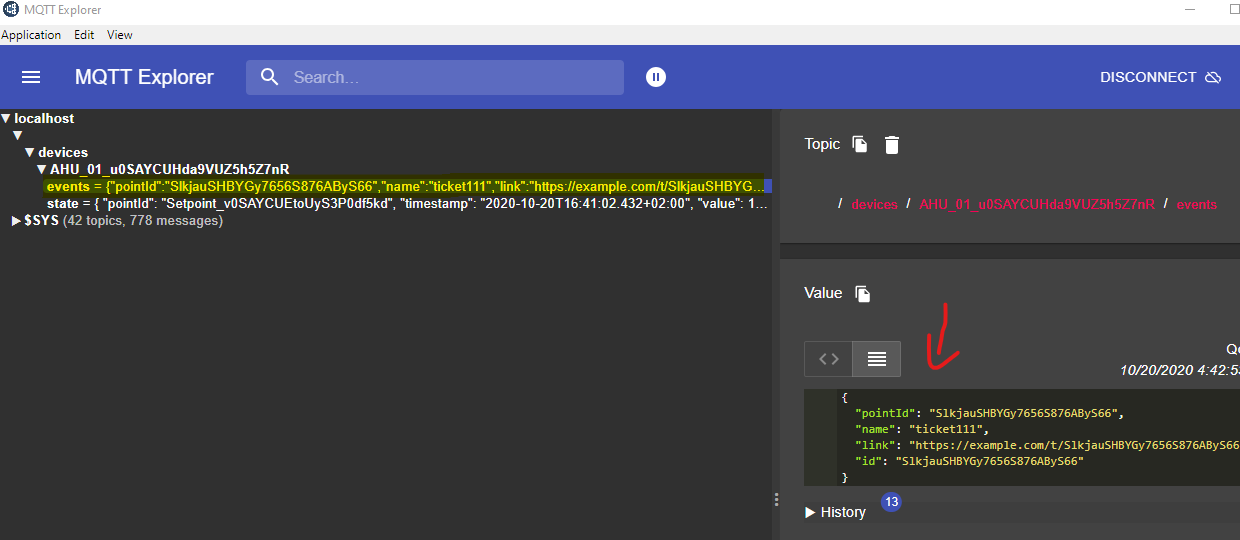

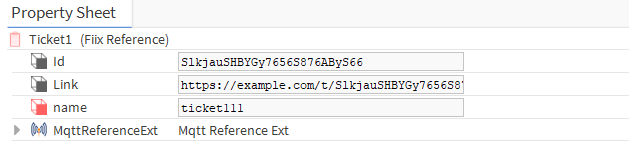

4. Now go to the reference and change a slot value.








5. You should see a new message sent and shown on the events subscription.









Next Step

Step 4 Send alarms to MQTT broker
