Remove Slot for macro

Summary

This block is used to remove a dynamic slot from a target. It is usually found in macros (and rather occasionally in automatic strategies).

Implementation

• Drag and drop the block from the palette
• Link the "execute" action from the "executed" topic of the previous block

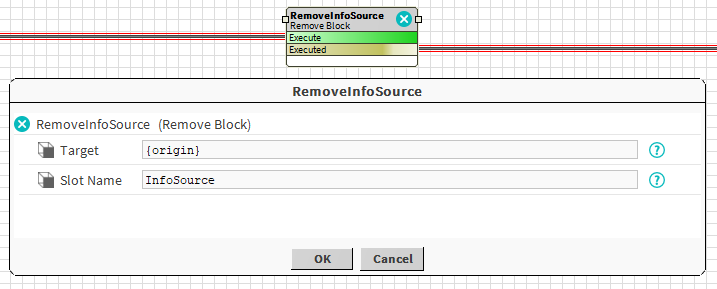

Example

Properties

• Target: SFormat to define the component which owns the slot. Ex: the origin
• SlotName: SFormat to define the name of the slot to remove. Ex: "InfoSource" (it has to be a dynamic property), HistoryExt, AlarmExt...
