Set Slot for macro

Summary

This block is used to change the value of a slot in a target.

Implementation

• Drag and drop the block from the palette
• Link the "execute" action from the "executed" topic of the previous block

Example

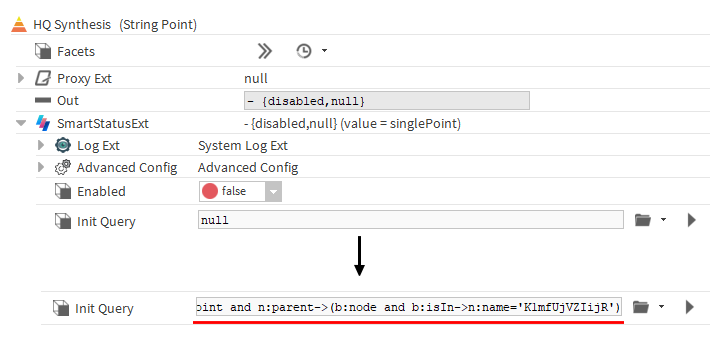

A SetSlot is used to change the property "Init Query" of a synthesis of a point located in a building. All properties could be changed in the same way.

Properties

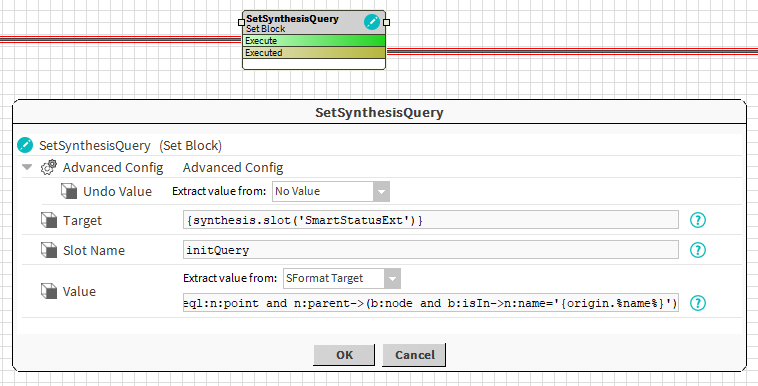

• Target: SFormat to define the component whose property has to be changed. Ex: the slot named SmartStatusExt of an artifact named synthesis created by a previous block
• SlotName: SFormat to define the name of the slot to change. Ex: initQuery (it's a frozen property of the SmartStatusExt)
• Value: To define the new value of the slot. See General strategy parameters. Ex: an ord is created from SFormat. Some value relative to the origin of the event can be injected (here the name of the node is injected in the query)

Advanced Config

• UndoValue: (only when being used in a strategy) If desired, the block can undo its operations. The old value of the slot is not saved but a new value can be defined and set in case of an undo. See General strategy parameters .Ex: Set a default value for the initQuery
