ElasticsearchTSConnector

Summary

Elasticsearch Time Series Connector it is the component which is responsible for managing connection and sending histories to the elasticsearch in a Niagara station.

This component is a Timeseries Connector, this page will only contain information specific to this component.

Implementation

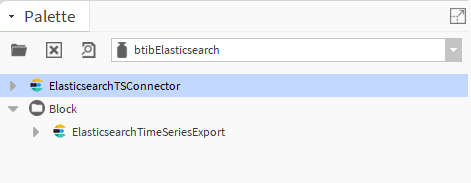

  1. Open the btibElasticsearch palette.

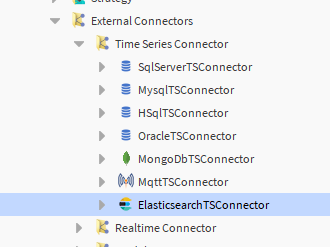

  2. Drag and drop the ElasticsearchTSConnector to Services > Btib Service > External Connectors > Time Series Connectors.

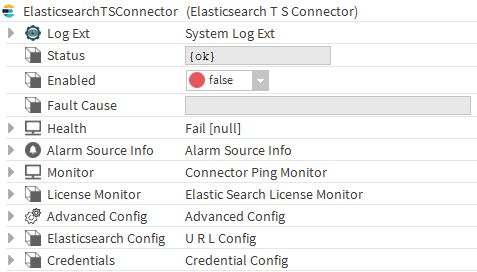

  3. Double click on the connector fill the connection details.


 Properties

  • Elasticsearch Config: The instance host and port.

  • Credentials: The username and password.
