Summary
This block only works in the combination of a SourceSelectionTag (btibStructure > NodeTag > SourceSelection). It is used to extract its generated tag values and to convert them as artifacts.
Implementation
-
Drag and drop the block from the palette
-
Link the "execute" action from the "executed" topic of the previous block

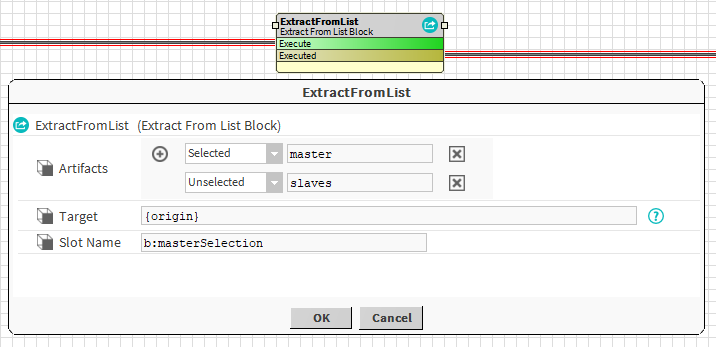

Example
This block creates two artifacts:
-
master: contains the selected entities by the SourceSelection tag contained in the origin (an office or a meeting room)
-
slaves: contains all the other entities of the list of the SourceSelection tag
Properties
-
Artifacts: Artifacts created by this block
[data-colorid=go3yhxtfvy]{color:#333333} html[data-color-mode=dark] [data-colorid=go3yhxtfvy]{color:#cccccc}[data-colorid=gtuvz2mcpc]{color:#333333} html[data-color-mode=dark] [data-colorid=gtuvz2mcpc]{color:#cccccc}Selected: component selected in the list created by the SourceSelection tagUnselected: all the other components in the listAll: all components in the list (including both selected and unselected) -
Target: SFormat to define the component that contains the SourceSelection tag
-
SlotName: SFormat to define the name of the tag in the target that is given by a SourceSelectionTag
Behavior: DO & UNDO
Creates artifacts with values given by the SourceSelection tag.
