MqttTSConnector

Summary

Mqtt Time Series Connector it is the component which is responsible for managing connection and sending histories to an MQTT server in a Niagara station.

This component is a Timeseries Connector, this page will only contain information specific to this component.

Implementation

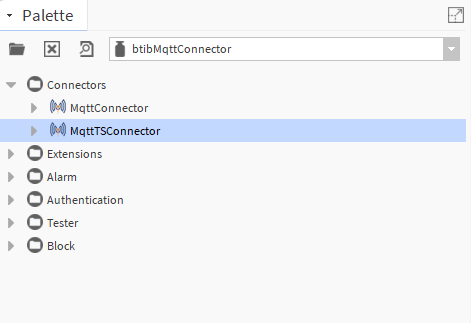

  1. Open the btibMqttConnector palette.

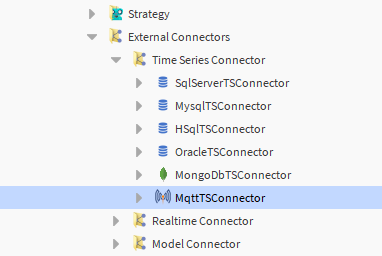

  2. Drag and drop the Connector to Services > Btib Service > External Connectors > Time Series Connectors folder.




  3. Double click on the connector fill-in your connection information, then hit save.

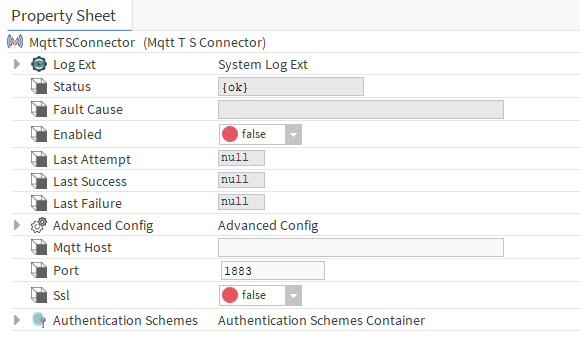

 Properties

  • Mqtt Host: MQTT server host.

  • Port: The server port.

  • Ssl: Use ssl for connection.

  • Authentication Schemes: Authentication options.
