RecipientSwitch

Description

The RecipientSwitch component is used to route received alarms to different recipients based on a schedule of on-call users and alarm escalations.

Implementation

• Copy and paste the component into the AlarmService

• Set the number of users per level from the component's LevelXUserCount slots

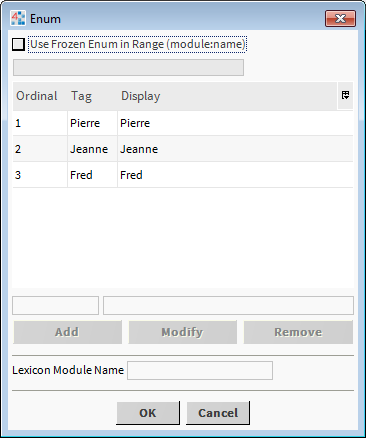

• Prepare "EnumSchedule" type time schedules by defining names corresponding to the different related recipients in the "range" slot, starting with the ordinal 1 (see screen shot below).

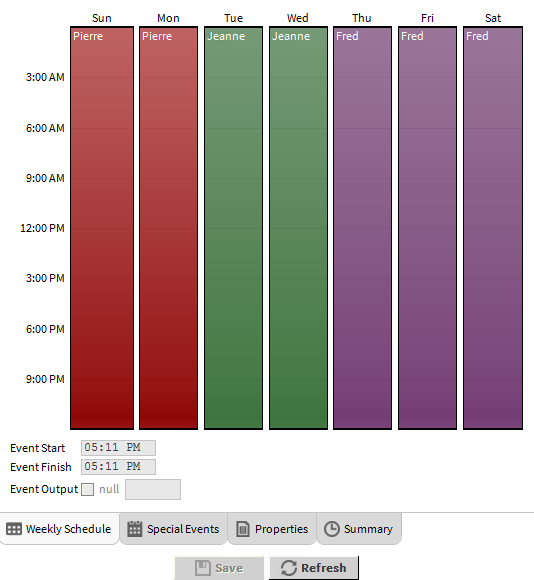

• Then define the time slots corresponding to the different recipients in each EnumSchedule.

          (warning) You cannot link ConsoleRecipient components to this object

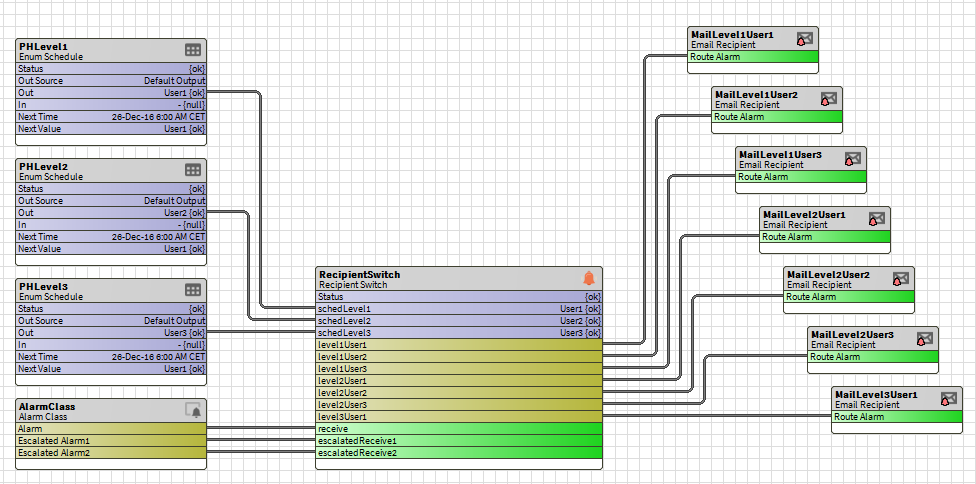

• Link the Out slots of your EnumSchedule components to the SchedLevelX slots of the RecipientSwitch for each escalation level.

• Link the LevelXUserY slots of the RecipientSwitch to the routeAlarm slot of your existing recipients based on the list defined in the EnumSchedule of the associated level.

• Link the alarm topics of the alarm classes (AlarmClass) to the receive slot of the RecipientSwitch. Also link the EscalatedReceiveX topics to the EscalatedAlarmX slots if necessary.

Properties

• Status: Indicates the general status of the component, {ok} if the operation was successful or {fault} to indicate abnormal behavior

• FaultCause: Indicates the cause of a configuration error. The FaultCause is empty if the component is properly configured.

      (warning) Configuration error: Execution of the component is blocked while it is misconfigured (non-empty Status.fault and FaultCause).

• LastExecFailure: The date and time of the last execution failure of the component

• LastExecFailureCause: The reason for the last execution failure of the component

      (warning) Runtime Error: If the component fails to run, its status changes to fault. This status is lost if the configuration is changed but remains valid and if the station restarts.

• LevelXUserCount: Determines the number of users per level. If this is 0, the level is considered not to exist.

• SchedLevelX: Entry defining to which recipient the alarm will be redirected

Actions

• EscalatedReceiveX : Actions allowing the reception of alarms from the alarm classes according to their level of escalation

Topics

• LevelXUserY : Propogates the alarm to the associated recipient based on the associated EnumSchedule and the alarm level.

Errors

Configuration erorrs

• • LevelXUserCount: As soon as a level X is defined with 0 users, all subsequent levels are ignored. The following levels must therefore all be set to 0.

  • SchedLevelX: The value of a SchedLevelX must be between 1 (inclusive) and the number of users defined for this level X (from the LevelXUserCount slot) (inclusive).

Exécution errors

• • The level of the action cannot be found: the "receive" (or "escalatedReceive") action was renamed. In this case, set level X to 0 and then reset it to the right number of users via the levelXUserCount slot.

  • The SchedLevelX property cannot be found: to make it reappear, set level X to 0 and then reset it to the right number of users via the levelXUserCount slot.

  • The status of the SchedLevelX property is invalid: the execution is canceled; change its state to a valid one.

  • The levelXUserY topic cannot be found: either the property does not exist or it is not a topic. If it exists, delete it, set level X to 0 and then reset it to the right number of users via the levelXUserCount slot.

Training

You can follow this e-learning course to practice
