Step 3 Export data to MQTT server

Export histories

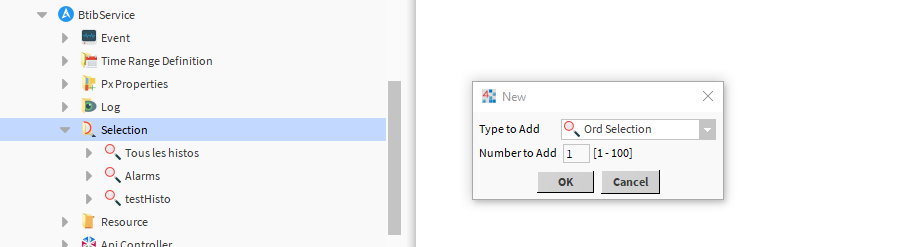

1. Go to the selection folder and create a new ord selection.

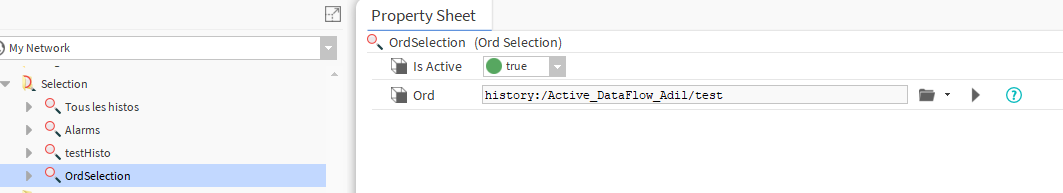

2. Fill the ord to select histories.

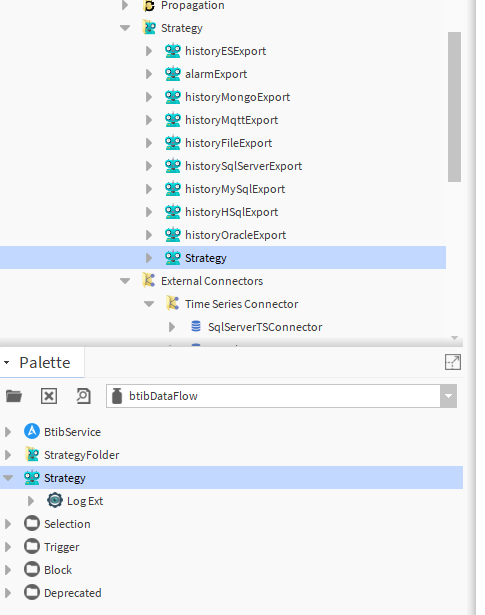

3. Go the the strategies folder and create a data flow strategy.

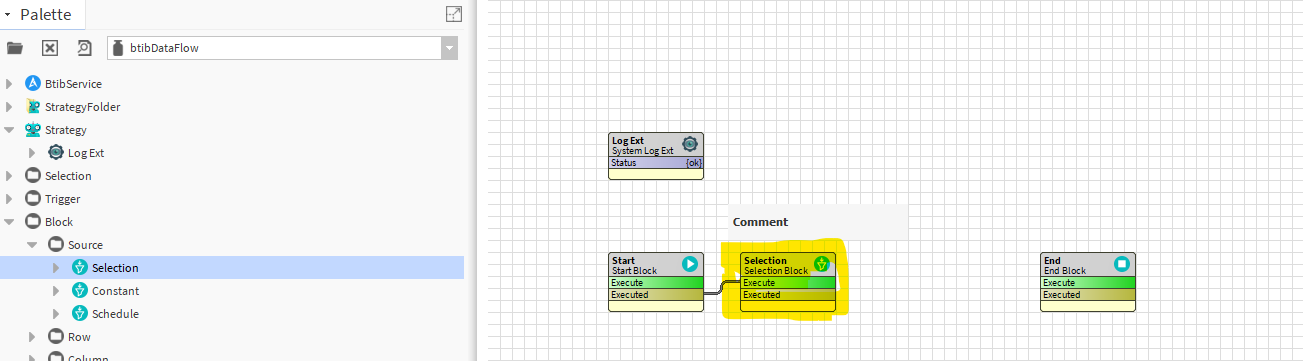

4. Add a selection block.

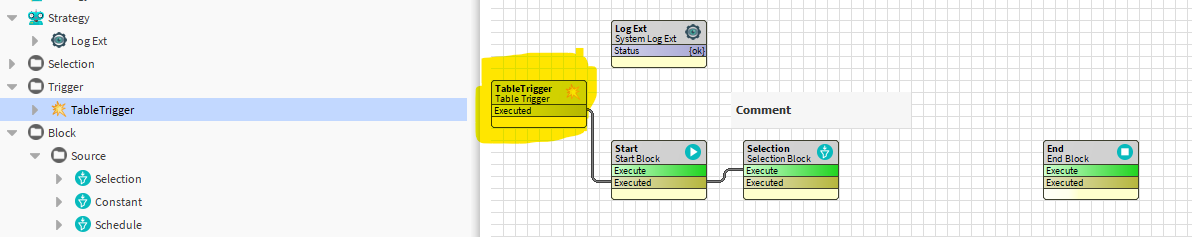

5. Then a trigger block.

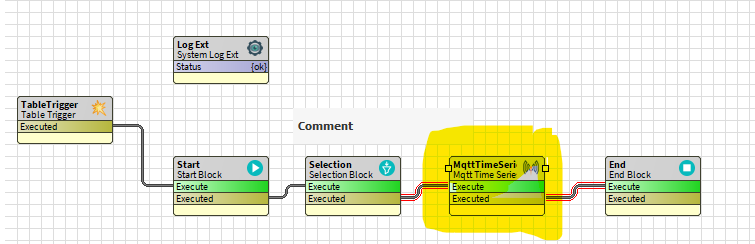

6. And finally a mqtt export block.

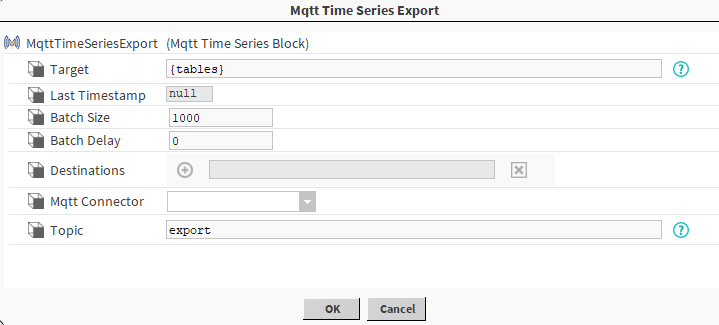

7. Configure the export block.

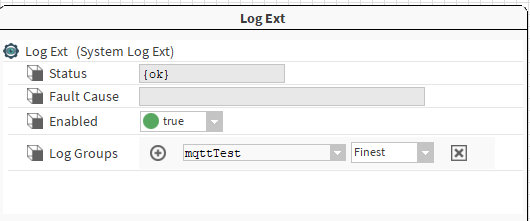

8. Enable the log ext.

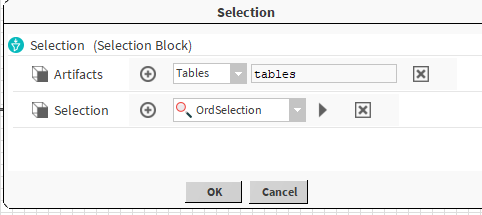

9. Choose the selection we created before.

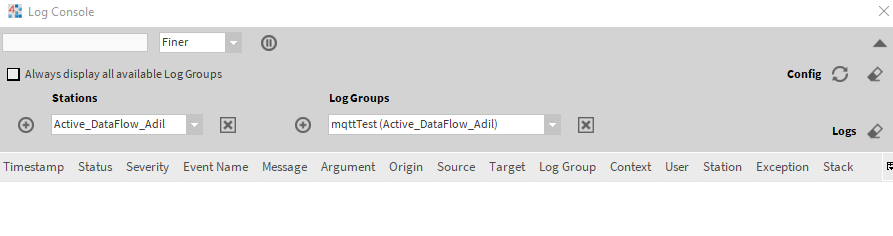

10. Open the logs console.





11. Open a cmd and subscribe for the topic 'C:\Program Files\mosquitto\mosquitto_sub.exe' -t export.
12. Then trigger the export.

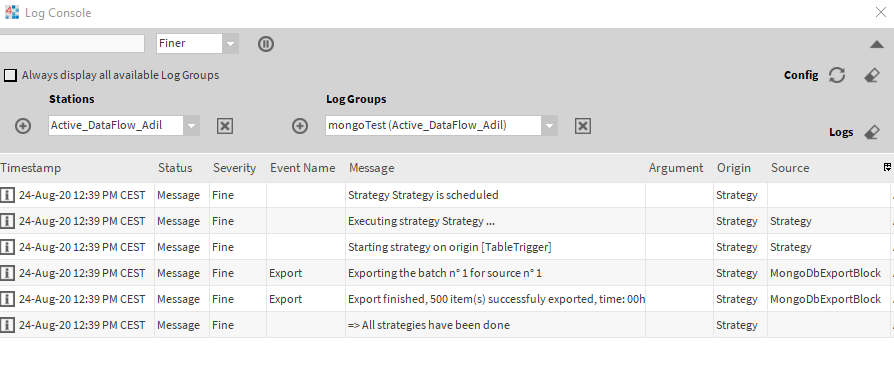

13. You should see the output on the console.

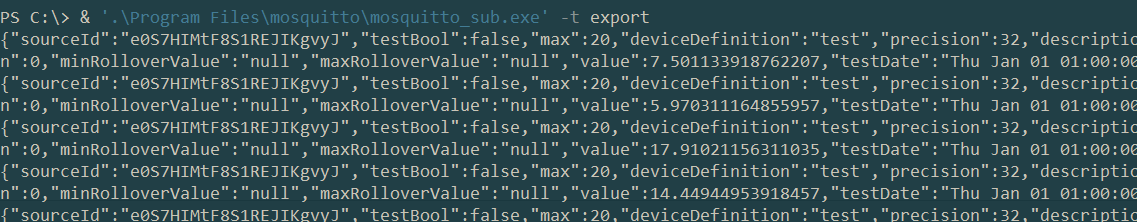

14. Now verify data on the cmd.
