Description
The TicketImport component allows you to send a request and convert the response into Tickets.
Implementation
-
Drag and drop the component into a RestTicketDeviceExt.
Actions
-
Execute: Sends the request and converts the result into Tickets.
-
SynchronizeTemplate: Synchronizes the TicketMapper with the corresponding template.

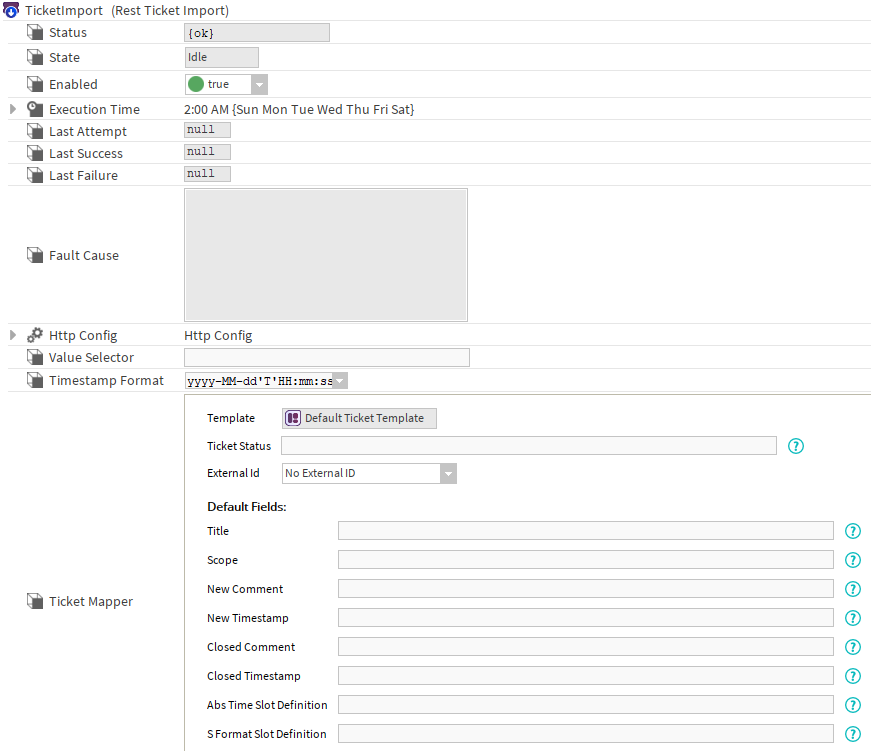

Properties
-
Status: The status of this component.
-
State: the current state of the import process.
-
Idle: The component is ready and available for a new import.
-
Pending: An import request has been received and is awaiting execution.
-
InProgress: The import operation is currently running.
-
-
Enabled: The enabled state of this descriptor.
-
ExecutionTime: The execution time controls when the execute action will be invoked.
-
LastAttempt: The last time that the import was started.
-
LastSuccess: The last time that the import completed successfully.
-
LastFailure: The last time that the import failed to complete successfully.
-
FaultCause: Reason for the fault.
-
HttpConfig: Defines the request to send.
-
ValueSelector: Used to select the part of the JSON response that represents the Tickets. This can be either an array or an object. JSON Key Selector applied on the HTTP response.
-
TimestampFormat: Format to use to decode Timestamp values.
-
TicketMapper: Component used to extract data from the alarm. See TicketMapperFieldEditor.
FaultCauses:
|
Error Message |
Details |
TroubleShoot |
|---|---|---|
|
Missing BtibService |
The BtibService is not present in the Services. |
Add it from the palette to the Services. |
|
Disabled BtibService |
The BtibService is present but is not enabled. |
Enable your BtibService. |
|
Found no valid ‘activeTicketing' license |
The system could not detect a valid activeTicketing feature. |
In “station:|slot:/Services/PlatformServices/LicenseService” check that your Btib.licence contains the “activeTicketing” feature and check that it’s not expired.
|
|
Missing TicketService |
The TicketService is not present in the Services. |
Add it from the palette to the Services. |
|
The TicketService is not operational |
The TicketService experienced an error. |
Check the FaultCause on the TicketService. |
|
The RestNetwork is not operational |
The RestNetwork experienced an error. |
Check the FaultCause on the RestNetwork. |
|
The RestQuery is not operational |
The RestQuery experienced an error. |
Check the FaultCause on the RestQuery. |
|
Missing TicketTemplate |
Cannot find the associated TicketTemplate. |
Add the TicketTemplate in the TicketTemplates and reselect it in the Template slot. |
|
The TicketTemplate is not operational |
The associated TicketTemplate experienced an error. |
Check the FaultCause on the associated TicketTemplate. |
|
The RestTicketDeviceExt is not operational |
The RestTicketDeviceExt experienced an error. |
Check the FaultCause on the RestTicketDeviceExt. |
