LiveChart Card

Used as

  • Card


Summary

This Card is used to display the view of a LiveChart Card

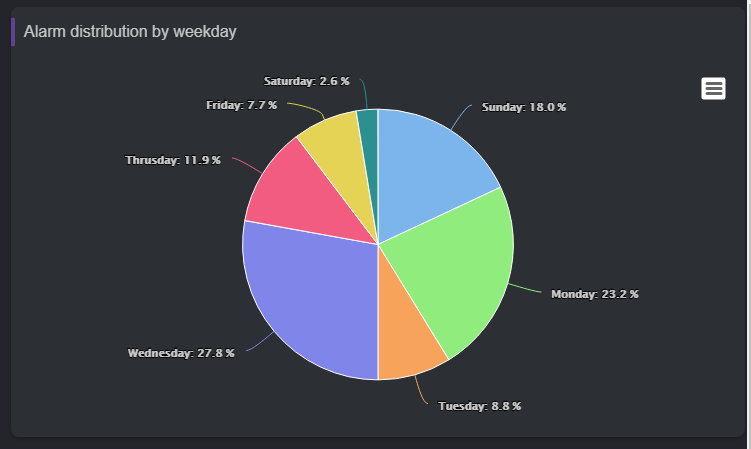

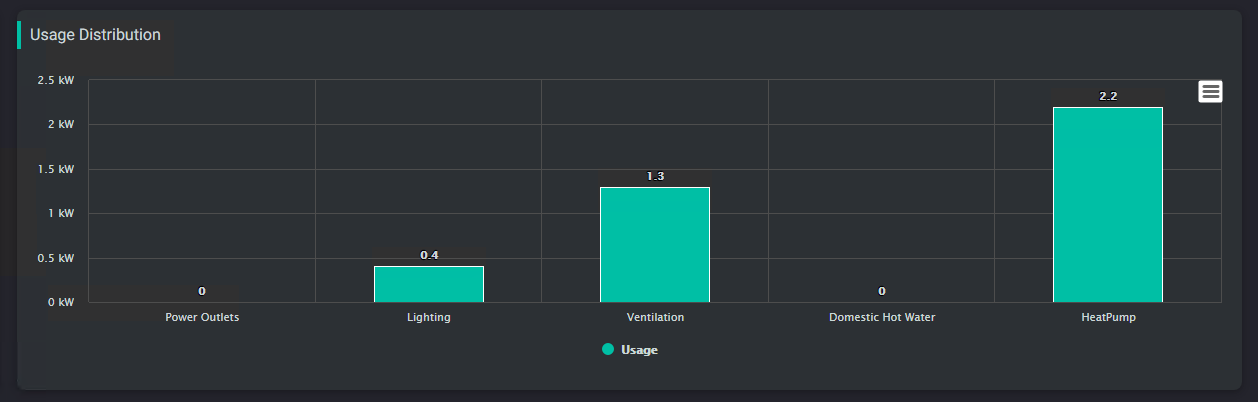

image2019-11-30_22-4-21.png image2022-3-27_20-59-55-.png


Implementation

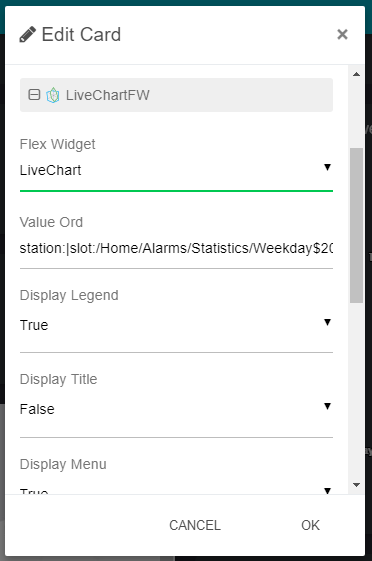

  • Add a card from the settings bar, and choose in the list LiveChart or drag&drop a LiveChart Card from the NavTree

  • If you added the card from the settings bar, define the ord of the LiveChart

  • Then define what you want to display



Flex Widget Properties

  • ValueOrd: The ord to the LiveChart

  • DisplayLegend: Whether to display the legend at the bottom

  • DisplayTitle: Whether to display the title at the top

  • DisplayMenu: Whether to display the sandwich menu to export the chart

  • LegendForeground: Color of the legend

  • ChartBackground: Background color of the chart

  • ChartProportion: Size of the chart in percentage inside its container. 85 is a recommended value.
