HttpConfig

Description

This is a copy of the Http Config page in the RestNetwork.
Note: This page only covers the additional functionalities specific to this context.

Implementation

• Present by default in the TicketExport.

• Customize it

• Trigger the execute action in the parent TicketExport.

Properties

• Body: The content that will be sent in the HTTP request.
  Pay special attention to the $(tickets) variable, it is a special keyword that will be replaced by a JsonArray generated by the TicketToJson subcomponent.
  If you work with a batch set to 1, you can use the $(ticket) variable wich return a single JsonObject.

• TicketToJson: This subcomponent defines how each individual Ticket is converted into a JsonObject. It gives you full control over the structure and content of each ticket in the exported array.

Variables

• $(tickets): JsonArray containing all the JsonObjects generated by the TicketToJson Component.

• $(ticket): Only available if batch=1 in the ExportConfig. The JsonObject created by the TicketToJson Component.

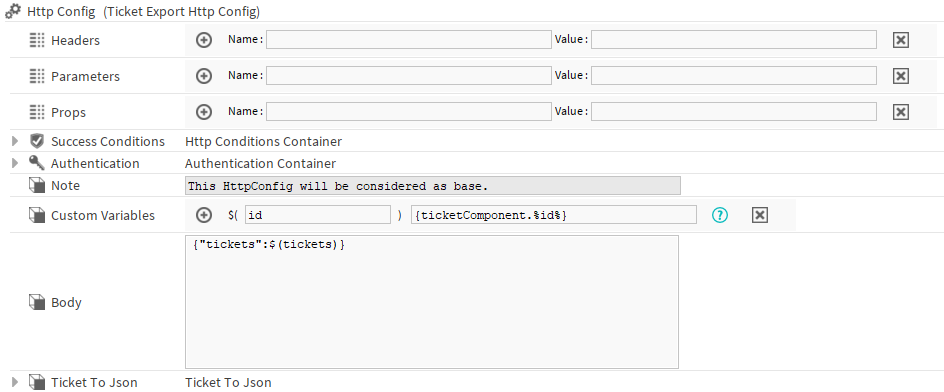

• $(ticketComponent): Only available if batch=1 in the ExportConfig. The currently exported Ticket. Allows you to create a custom variable based on the Ticket. Ex:

and reuse it in the HttpConfig
