AlarmRecipient

Summary

The AlarmRecipient allows to send alarms to the remote Service.

Implementation

• First you must setup a RealTimeConnector.

• Drag and drop the AlarmRecipient from the palette in the AlarmService.

• Fill the optional alarm data you want to add to the document which will represent each alarm record. Example: msgText, building, floor etc.

• Give a name to the device (in your service) which will be dedicated to alarms in the destination field.

• Select the connector.

• In the AlarmService Wiresheet, create a link from the "alarm" slot in an AlarmClass to the "Route Alarm" slot in the AlarmRecipient.

• You can also test the component by triggering the "Route Alarm" action

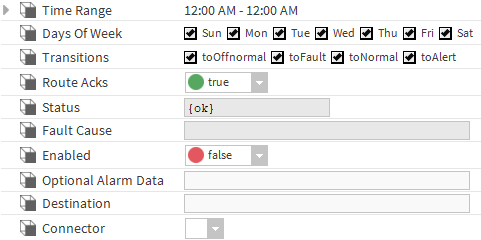

Properties

• Status: Alarm recipient status.

• Fault Cause: The error message field.

• Enabled: Enable the alarm recipient.

• Optional Alarm Data: Additional tag to be added to the message generated for each alarm (contained in the alarmData field in Niagara)

• Destination: Name of the device dedicated to the alarms.

• Connector: The associated connector.

Actions

• Initialize: Initialize the connection with the service.

• Disable: Disable the recipient.

• Clean: Unregister the recipient.



Fault Causes

• Connector Not Found:  if there is no connector in the Btib Service > External Connectors > realtime Connector folder, try to add one.

• Any other:  Just clean and initialize.
