ComponentViewer

Used as

• Header

• Card

• Sidebar

• Footer

Summary

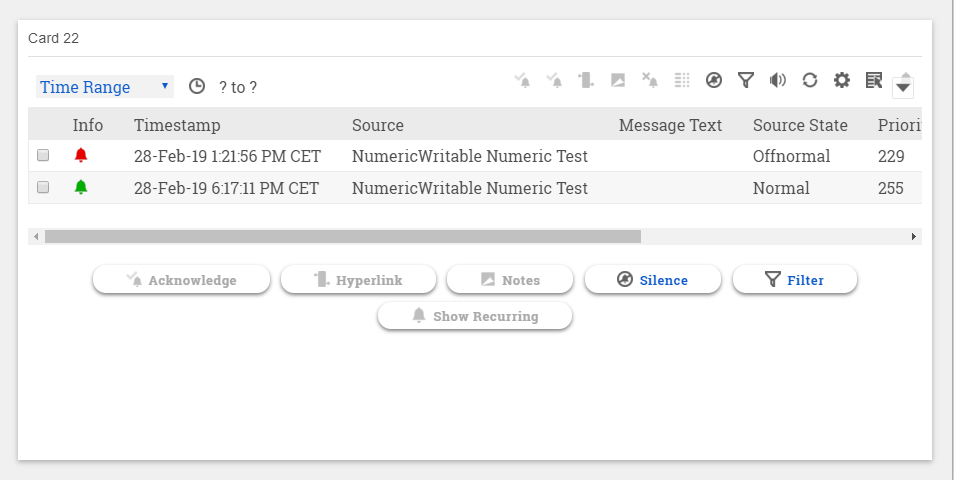

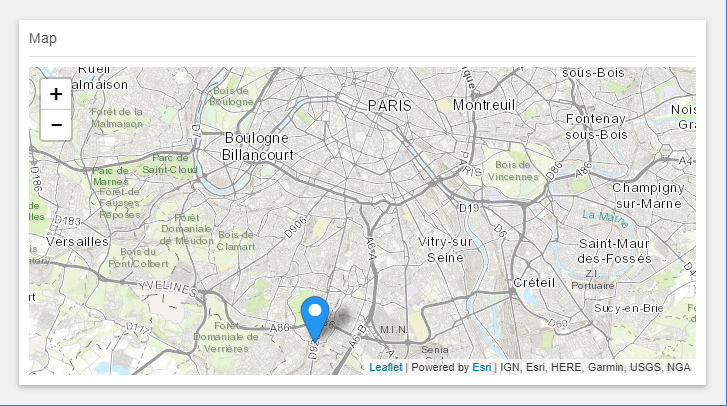

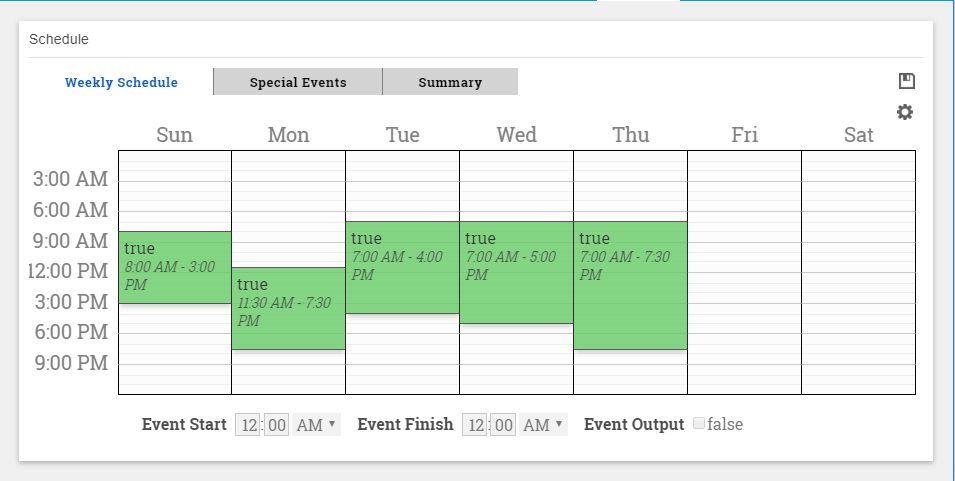

This card can display any HTML5 existing view of a component: AlarmConsole, Scheduler, MapLocationView, PropertySheet etc.

Implementation

There are two ways to add it to the FlexView:

• Add a card from the settings bar, and choose in the list ComponentViewer

• Or drag&drop a component from the nav tree into a FlexView

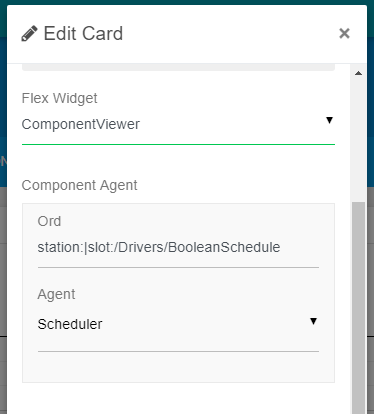

A part called "Component Agent" will appear. You can modify the ord field as for a classic px binding and you can choose the associated agent (the view) to display.

The ord can be relativized with slot: or slot:../../myComponent etc.

Flex Widget Properties

• ComponentAgent:

  • The Ord of a Component with the agent view to display. The Ord can be relative (it will be revolved from the component the FlexView is being on). The Ord can also include SFormat.

  • The Agent (the view) to display. This list will change depending on the given ord.
