Gauge

Used as

• Card

Summary

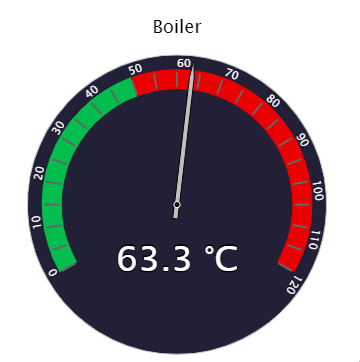

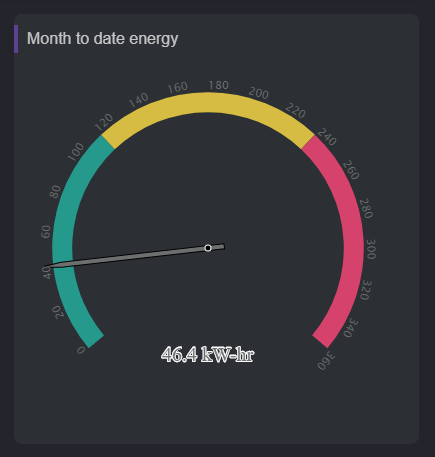

This card displays the live value of a Numeric point and can be highly personalized

Implementation

• Add a card from the settings bar, and choose in the list Gauge

• Fill-in the path to the point in valueOrd if the card is created from the setting bar

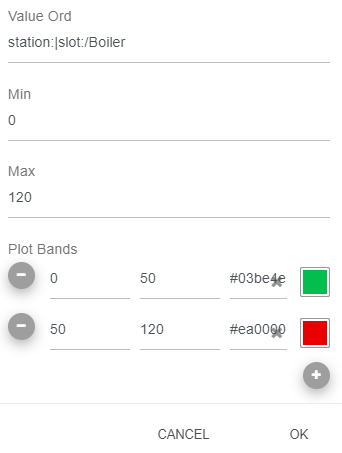

Flex Widget Properties

• ValueOrd; The path to the NumericPoint to display. The destination must be a NumericPoint (or NumericWritable) otherwise it won't work.
   SFormat is supported.

• Title: The title of the card
   SFormat is supported.

• Min: Min value for the plotbands

• Max: Max value for the plotbands

• PlotBands: Color to apply for a particular range. They need follow the min and the max defined above.

• PercentageMode: Whether to display a relative value in percent or not

• IconOrd: Ord path of the icon to display

• TitleSize: Size of the title in pixel

• StartAngle: Start angle of the plotBands

• EndAngle: End angle of the plotBands

• ChartBackground: Background color of the chart

• GaugeBackground: Background of the gauge

• TitleForeground:  Foreground of legends and axis

• ValueForeground:  Foreground of the value

• DialBackground:  Background of the dial

• TickLength: Length of tick in plotbands

• DataLabelY: The vertical position of the value
