SimpleGauge

Used as

  • Card


Summary

Circular gauge with the live value for a NumericPoint or NumericWritable

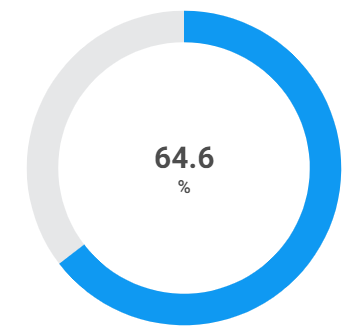

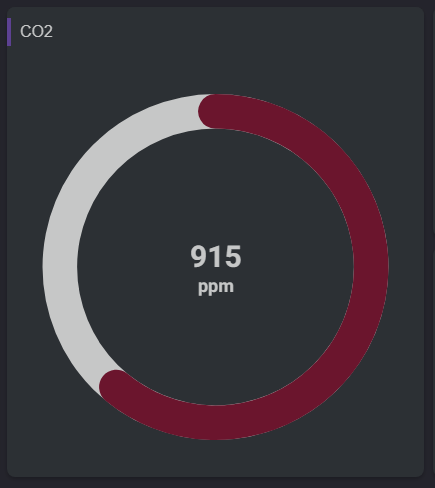

  image2020-2-17_18-8-26.png           image2020-2-26_21-48-10.png


Implementation

There are two ways to add it to the FlexView:

  • Add a card from the settings bar, and choose in the list SimpleGauge

  • Or drag&drop a NumericPoint or NumericWritable from the palette

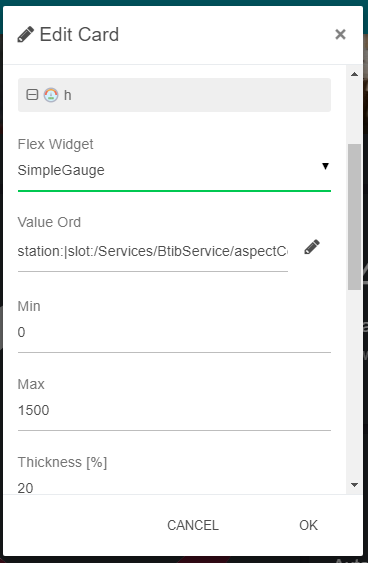

Set the personalized properties.



Flex Widget Properties

  • ValueOrd: The Ord of a control:NumericPoint. It can be relativized with slot: or slot:../../myPoint etc.
    (information) SFormat is supported.

  • Min: Min value of the gauge. This property accepts an sFormat.

  • Max: Max value of the gauge. This property accepts an sFormat.

  • Thickness: Thickness of the gauge.

  • FontSize: The size of the output value.

  • PaneColor: Color of the base of the gauge.

  • GaugeColor: Color of the gauge.

  • Rounded: Whether to draw rounded edges on the gauge.
