BooleanPointSelector

Description

The BooleanPointSelector component is used to automatically create links from or to the BooleanPoints for the station.

Implementation

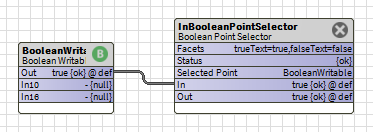

Double-clicking on the object when in a WireSheet opens a window allowing you to select the point to link via a drop-down list.

  If a PointSelector object is duplicated, it reverts to its default state (no selection)

Properties

• Facets: Takes the facets of the BooleanPoint to which it is linked
• Status: The PointSelector status. It can change to {overridden} if this action is triggered
• SelectedPoint: The point selected
• Container: The ord from which the object looks for points
• ListFormat: The format for displaying points in the drop-down list.

          Example: parent.displayName + '-' + displayName

• Condition: Allows you to add a condition to the query that searches for the points in the container, for example on the display name of the point or its parent, (optional)
• Selection: The drop-down list of BooleanPoints in the container that satisfy the condition (if a condition has been entered). When a point is selected, the link is created or updated.
• LinkDirection: Indicates the direction of the link (to the in slot or from the out slot of the PointSelector)
• inSlot: In the case of an outbound link from the PointSelector, this property indicates to which slot the target object is linked.
• In: BStatusBoolean input slot
• Out: BStatusBoolean output slot. Can be overridden by the Override action or restored by the Auto action.

Actions

• UpdateList: Updates the drop-down list of available BooleanPoints
• Override: Allows you to override the Out slot of the PointSelector to true or false (the output out then takes the {overridden} status)
• Auto: Disables any override (the value and status of the out slot are identical to the in slot).
